What Makes Single Clamping Pipe Fittings the Choice for Modern Piping Systems?

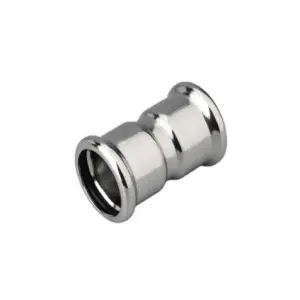

Single clamping pipe fittings are precision-engineered components designed to securely join, align, and stabilize pipes within industrial and commercial systems. They are commonly used in fluid transport, pneumatic lines, and mechanical structures where both durability and easy installation are crucial. Unlike double-clamping or welded joints, single clamping fittings offer a balance of simplicity, strength, and flexibility—making them a preferred choice in sectors such as manufacturing, construction, automotive, chemical processing, and water treatment.

The primary function of these fittings is to provide stable and leak-free connections between pipes while minimizing vibration and noise. They are made from high-quality materials like stainless steel, carbon steel, and reinforced plastics, depending on the application requirements. Their structural integrity ensures that systems can operate safely under high pressure, temperature fluctuations, or continuous vibration.

One of the main reasons industries favor single clamping pipe fittings is their ease of installation and maintenance. The design allows technicians to assemble or disassemble the system quickly without requiring specialized tools. This reduces downtime and labor costs significantly compared to traditional welded joints.

In modern engineering systems, where precision and reliability are non-negotiable, single clamping pipe fittings serve as a cost-efficient and sustainable solution. Their modular design also allows for flexibility in layout adjustments, system expansions, or future modifications.

How Do Single Clamping Pipe Fittings Work?

The functionality of single clamping pipe fittings lies in their clever mechanical design. Each fitting uses a single clamp (usually a steel or alloy bracket) that grips the pipe securely within a mounting body or base. The clamp applies even pressure along the circumference of the pipe, preventing slippage, leaks, or vibrations.

When installed, the clamping force is distributed through the clamp body and bolts, providing a strong yet vibration-dampening hold. This not only ensures the safety of the pipeline but also extends the service life of the entire system.

Here’s how a typical installation process works:

1. Preparation: Ensure that all pipes are cut to accurate lengths and cleaned of debris.

2. Positioning: Align the pipe sections within the clamp housing.

3. Clamping: Tighten the single clamp around the pipe using bolts or screws as per torque specifications.

4. Inspection: Check the alignment and confirm that the fitting is seated properly.

5. Testing: Perform pressure or flow testing to verify sealing and stability.

This design is particularly beneficial for systems that require frequent maintenance or upgrades. The simplicity of the single clamp allows easy disassembly without damaging the pipes or fittings.

Technical Specifications Example:

These parameters reflect the adaptability of single clamping pipe fittings to various environments, from heavy-duty hydraulic systems to delicate instrumentation setups.

Why Choose Single Clamping Pipe Fittings Over Other Types?

When it comes to piping systems, choosing the right type of fitting is crucial for long-term performance and cost efficiency. So, why do so many professionals choose single clamping pipe fittings over other alternatives?

a. Simplicity and Speed

Unlike double clamping systems or welded connections that require multiple steps and precise alignment, single clamping fittings allow for quick assembly and disassembly. This means reduced installation time and labor costs—particularly important in large-scale projects.

b. Versatility

Single clamping fittings can be applied to multiple industries—hydraulics, pneumatics, marine, construction, chemical processing, and even renewable energy systems. Their universal compatibility makes them a preferred choice among engineers and maintenance teams.

c. Superior Vibration and Noise Control

The single clamp design effectively reduces vibration and mechanical stress on the piping system. This minimizes wear, noise, and potential damage to surrounding equipment.

d. Space Efficiency

In applications where compactness matters, single clamping pipe fittings take up less room than dual-clamp or bracket systems. This makes them ideal for tight spaces such as machinery interiors or modular production lines.

e. Easy Maintenance

Their modular design means you can replace or adjust fittings without dismantling the entire system. This saves valuable operational time during maintenance or upgrades.

f. Corrosion and Heat Resistance

With materials like stainless steel 316 and high-grade nylon, these fittings can resist corrosion, heat, and chemical exposure. They perform exceptionally well even in harsh or outdoor environments.

g. Cost Efficiency

When considering the balance between material cost, installation time, and lifespan, single clamping pipe fittings stand out as economically advantageous. They deliver long-term savings by minimizing leakage, system failure, and downtime.

In summary, single clamping pipe fittings are an optimal choice for professionals who value reliability, efficiency, and flexibility in their pipeline systems.

Common Questions About Single Clamping Pipe Fittings

Q1: How do I choose the right size of Single Clamping Pipe Fitting for my system?

A: The size depends on your pipe’s outer diameter and system pressure requirements. You should measure the pipe accurately and match it with the fitting’s internal diameter. For high-pressure applications, opt for stainless steel models that can handle higher stress levels. Many manufacturers, such as Shuangsen, also offer customizable sizes and materials to suit specific project needs.

Q2: Can Single Clamping Pipe Fittings be used for both hydraulic and pneumatic systems?

A: Yes. These fittings are designed to work with both hydraulic (liquid) and pneumatic (gas) systems. Their strong clamping force ensures zero leakage, while their vibration-resistant design makes them suitable for high-pressure or high-speed flow systems.

Reliability and Innovation with Shuangsen

Single clamping pipe fittings are more than just connectors—they represent the engineering precision and reliability needed for modern industrial systems. They ensure leak-proof performance, superior vibration damping, and easy installation across various industries. Whether you are designing a new pipeline or upgrading an existing one, these fittings provide a durable, cost-effective, and maintenance-friendly solution.

At Shuangsen, we specialize in manufacturing high-quality pipe fittings that meet international standards and deliver consistent performance in demanding environments. Our products are made from premium materials and tested rigorously to ensure reliability, safety, and longevity.

If you are looking for professional-grade Single Clamping Pipe Fittings with customizable options and competitive pricing, contact us . Our team of experts will help you select the right solution for your specific application—ensuring that every connection in your system is strong, secure, and built to last.
