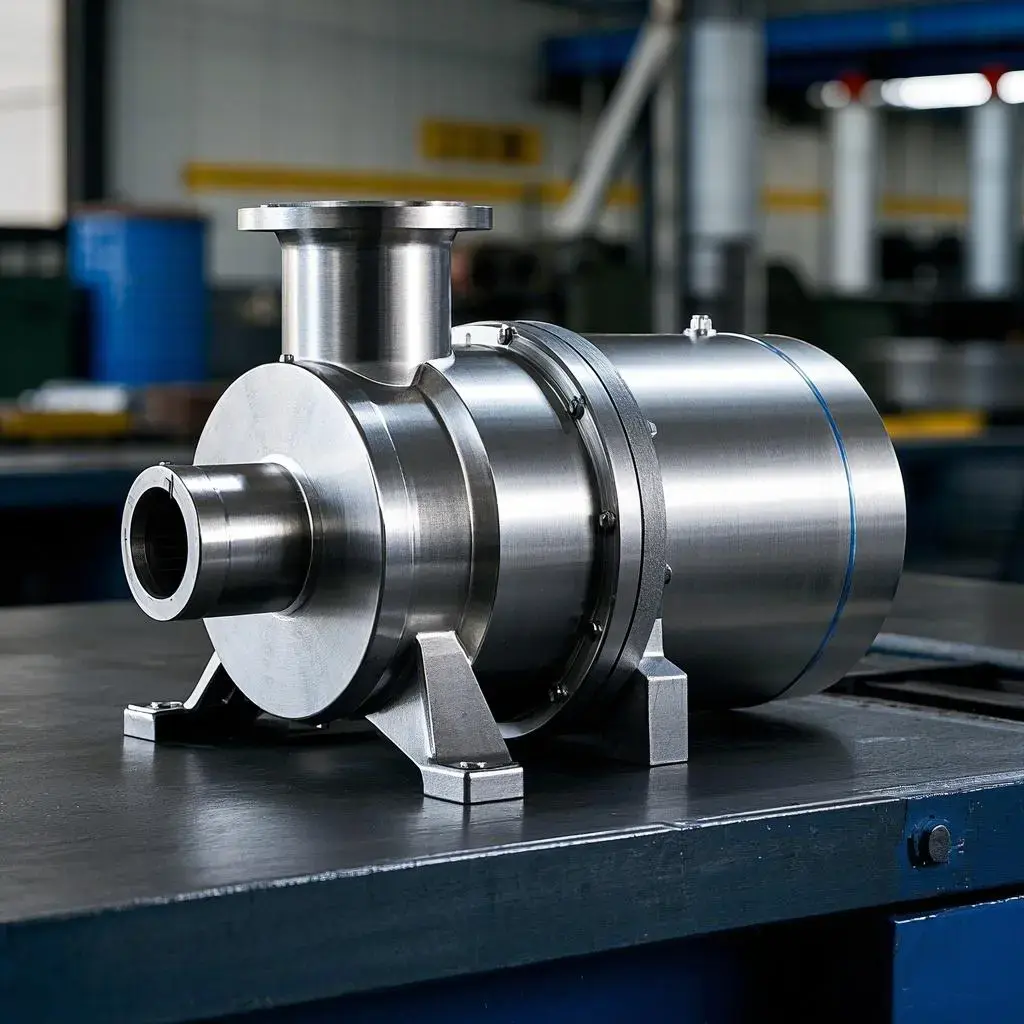

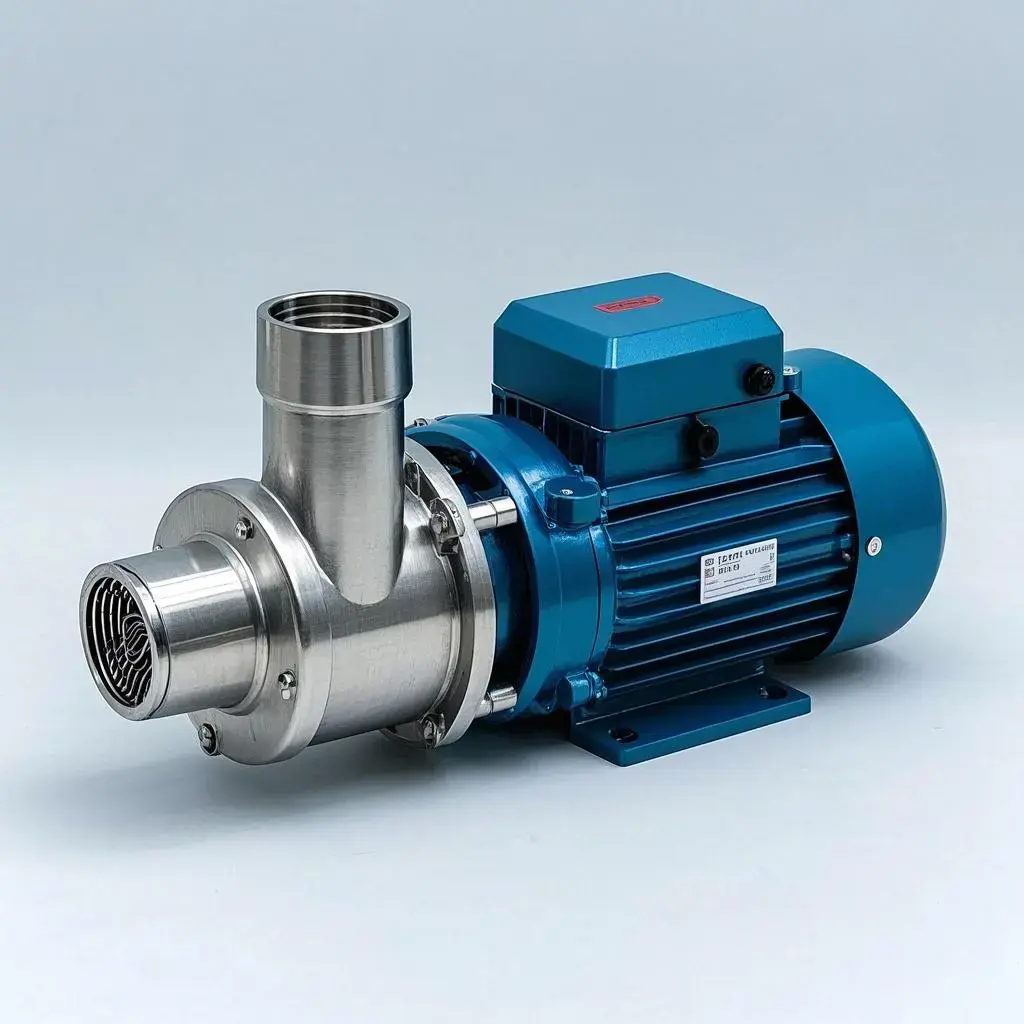

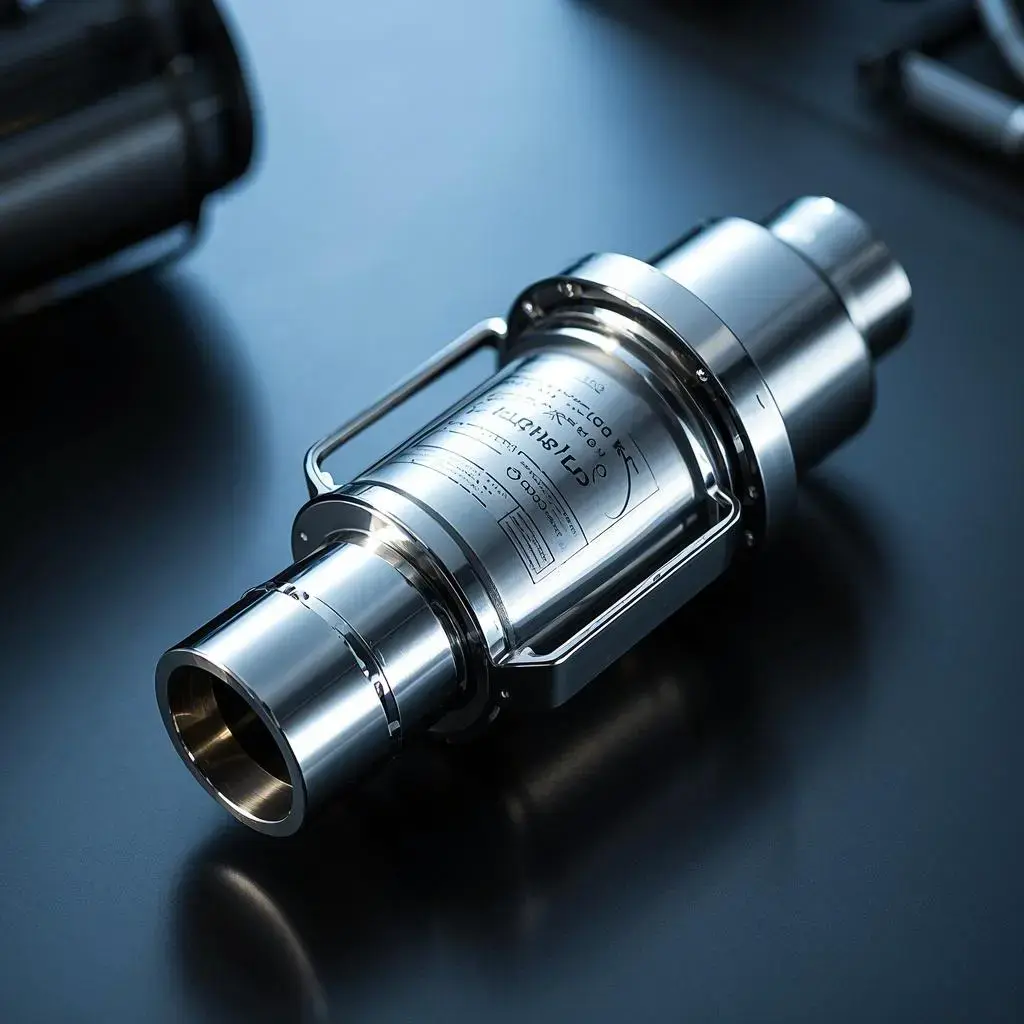

Water Pump Pipe

Shuangsen is an authorized manufacturer and global supplier specializing in heavy-duty Water Pump Pipe solutions. Built with fully nitrogen-shielded welding and pure hydrogen annealing protection, this precision equipment displays an ultimate tensile profile above 690 Mpa and full rust immunity over a 1000-hour salt spray test.

Metallurgical Properties and Material Specifications

Elemental Grade Composition

Precision liquid handling systems depend on exact chemical control to resist oxidation and wall thinning under heavy friction. The following matrix details the precise maximum and minimum percentage guidelines enforced across our manufacturing runs:

Alloy Category	C (%)	Si (%)	Mn (%)	P (%)	S (%)	Cr (%)	Ni (%)	Ti (%)
Type 409	≤ 0.08	≤ 1	≤ 1	≤ 0.045	≤ 0.045	10.5 ~ 11.75	≤ 0.5	6 × C ~ 0.70
Type 409L	≤ 0.06	≤ 1	≤ 1	≤ 0.015	≤ 0.015	10.5 ~ 11.75	≤ 0.5	10 × C ~ 0.75
Type 410	≤ 0.04	≤ 1	≤ 1	≤ 0.045	≤ 0.045	10.3 ~ 12.5	≤ 0.5	—

Mechanical Stress Limitations

To resist sudden hydraulic shock loads and mechanical vibrations during operation, structural elements must achieve certified load parameters. The documented stress boundaries are outlined below:

Alloy Category	Tensile Strength (MPa)	Yield Point (MPa)	Elongation (%)	Hardness Rating (HB)
Type 409	460	265	32	140
Type 409L	410	235	37	123
Type 410	365	195	22	200

Dimensional Matrices and Selection Criteria

To establish perfect sealing interfaces with high-pressure fluid pumps, every heavy-duty Water Pump Pipe is aligned to tight cross-sectional scales. The size distribution table lists our comprehensive structural wall configurations.

Standard Sizing Matrix

Outer Diameter D (mm)	Available Wall Thickness T (mm)
Φ 25 Under	0.5 / 0.6 / 0.7 / 0.8 / 0.9 / 1.0 / 1.2 / 1.5 / 2.0 / 2.5 / 3.0 / 4.0
Φ 25 ~ Φ 44.5	0.5 / 0.6 / 0.7 / 0.8 / 0.9 / 1.0 / 1.2 / 1.5 / 2.0 / 2.5 / 3.0 / 4.0
Φ 44.6 ~ Φ 63.5	0.5 / 0.6 / 0.7 / 0.8 / 0.9 / 1.0 / 1.2 / 1.5 / 2.0 / 2.5 / 3.0 / 4.0
Φ 76.2 - Φ 101.6	0.5 / 0.6 / 0.7 / 0.8 / 0.9 / 1.0 / 1.2 / 1.5 / 2.0 / 2.5 / 3.0 / 4.0
Φ 101.6 Upwards	0.5 / 0.6 / 0.7 / 0.8 / 0.9 / 1.0 / 1.2 / 1.5 / 2.0 / 2.5 / 3.0 / 4.0

Technical Procurement Specifications

Engineering configurations must be explicitly detailed during the booking stage to ensure complete field compatibility. Production line metrics follow these precise operational keys:

• Name of product: Targeted structural pipeline classification.
• Mark of stainless steel: Selected alloy grade designation (201, 304, 316L, 409, 409L, 410).
• Dimensions & Tolerances: Outside diameter tolerance values alongside verified actual thickness.
• Quantity & Fulfillment: Exact required volume metrics combined with specific packing way guidelines.
• Surface Finish Level: Sanded polishing parameters (180#-400#) or explicit high gloss options.
• Special Configurations: Any distinct geometric alterations requested for complex liquid circuitry.

Process Engineering and Thermal Capabilities

Welding Shielding and Crystal Realignment

Fabrication integrates automated all-nitrogen protection welding systems, generating a straight weld path that shows no internal shadow lines or density gaps. This setup is paired with a pure hydrogen annealing protection sequence. This matching method results in a tough molecular configuration featuring stretching limits above 690 Mpa and a master expansion capability higher than 30%. This exceptional ductility prevents splitting during severe forming processes.

Surface Polishing Categorization

Exterior walls undergo rigorous mechanical polishing to optimize hydraulic efficiency and reduce friction drag. Surface configurations include:

• Bright Mechanical Finish: Achieved through fine mechanical texturing ranging from 180# to 400#.
• Mirror Polish Finish: High-end specular texturing ranging from 400# to 800# for maximum surface smoothness.

Thermal Tolerance Limits

The base alloys are engineered to withstand notable thermal changes during high-speed fluid rotation. The intermittent high service temperature threshold operates safely at 815°C, while continuous service is sustained at 675°C. Internal structural stresses are relieved through bell furnace annealing conducted at 860°C ± 10°C.

Industrial Deployments

The excellent processing capabilities of this specialized Water Pump Pipe make it ideal for challenging routing operations. The line undergoes extensive mouth expansion, mechanical tube contraction, complex piping maneuvers, tight bending, and extreme flattening sequences without showing micro-fissures. Common installation areas include:

• Heavy-duty water pump distribution manifolds and fluid delivery intake systems.
• High-stress industrial plumbing arrays requiring high resistance to internal cavitation.
• Corrosive liquid transport circuits requiring documented wall safety and long-term durability.

Quality Verification and Diagnostic Methods

To eliminate structural defects prior to field integration, experienced technical inspectors verify every production lot using rigorous destructive and non-destructive methods:

• Flattening Test: Compresses the tube wall to ensure the weld path and parent steel flex uniformly under pressure without cracking.
• Bending Test: Evaluates structural ductility and checks for surface failures across extreme angular contours.
• Expanding Test: Includes mouth expansion and contraction tests to ensure the tube body accommodates over 30% elongation without structural splitting.
• Mechanical Property Test: Measures absolute yield strength, maximum stretching limits above 690 Mpa, and hardness performance against international guidelines.

Why Choose Us

• 1000-Hour Salt Spray Testing: The treated metal exterior resists a continuous 1000-hour salt spray test with absolutely zero signs of rust or surface pitting.
• Zero Burst Performance: Advanced gas-shielded welding creates a tough seam that allows the product to undergo pipe expansion, pipe shrinking, and complex bending paths without bursting.

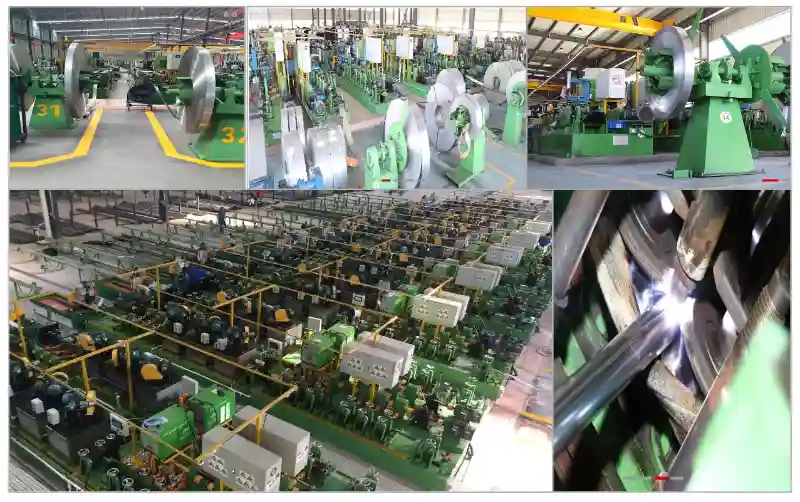

• Large Scale Production Infrastructure: Operating a 20,000-square-meter facility launched in 1999, housing 133 complete industrial welded assembly lines backed by 25+ years of metallurgical expertise.
• International Regulatory Authorization: Production lines fully comply with ISO9001 Quality Management, ISO14001 Environmental, ISO45001 Occupational Health, and ISO13485 Medical Device Quality Management systems.

Frequently Asked Questions

What technology prevents the weld line from leaking or splitting under hydraulic pressure?

The exceptional joint performance results from all-nitrogen protection welding combined with pure hydrogen annealing. This eliminates structural weak points and internal stresses, creating a uniform metal matrix with an expansion rate exceeding 30% and a tensile limits profile over 690 Mpa.

Why is bell furnace annealing used for these fluid pipes?

Processing the alloy through bell furnace annealing at exactly 860°C ± 10°C recalibrates the metal crystal matrix. This allows components to maintain high structural integrity during continuous exposure up to 675°C and intermittent thermal loads up to 815°C.

How is the exact finishing quality monitored before dispatch?

Surface quality is checked using specialized testing methods, including detailed mouth expansion and contraction tests along with standard roughness metrics. This ensures that whether a line requires a 180#-400# bright finish or a 400#-800# mirror surface, the profile is completely uniform and trace-free.

Strategic Integration and Brand Standards

Installing a specialized Water Pump Pipe within heavy industrial fluid lines requires absolute dimensional and structural accuracy. From the selection of premium raw steel batches to the precise tracking of outer diameter parameters from Φ 25 under up to Φ 101.6 upwards, our manufacturing processes are optimized to eliminate component failure under high hydraulic strain. By investing continuously in advanced research and upgrading our automated assembly equipment, our factory delivers reliable structural components to global industrial markets, maintaining the independent reputation and high excellence standards of the global Shuangsen brand.
