Kitchenware Stainless Steel Pipe

Zhejiang Shuangsen Metal Technology Co., Ltd., a manufacturer of high-performance tubular solutions, delivers kitchenware stainless steel pipe specifically designed for rigorous forming operations – flaring, bending, flattening, and reducing – without cracking. Unlike standard welded tubes, our process employs pure hydrogen annealing and nitrogen-shielded welding, producing a straight, shadow-free weld seam. Mechanical properties exceed 690MPa tensile and 30% expansion rate. Surface options from 180# to 800# mirror finish. 1000-hour salt spray test validates corrosion resistance, making this product ideal for kitchen handles, teapot spouts, and sanitary fittings.

Engineered for Severe Forming Operations – No Cracking, No Burst

Kitchen utensil components demand tubing that withstands repeated bending, flaring, flattening, and reducing without fracture. This product line is validated through a comprehensive mechanical test regime:

• Tensile strength ≥690 MPa – verified by universal testing machine.
• Expansion rate >30% – ensures ductility for swaging and end-forming.
• Flattening test – no burst when compressed to specified height.
• Bending & reducing – maintains structural integrity without surface cracking.
• 1000-hour salt spray test – surface remains corrosion-free (ASTM B117).

These mechanical indicators are not theoretical; they are routinely verified on every production lot. Compared to generic welded tubes that often fail during flaring or tight-radius bending, this product consistently passes destructive testing, reducing scrap rates in downstream fabrication.

Nitrogen-Shielded Welding + Pure Hydrogen Bright Annealing

Weld seam integrity directly influences formability and corrosion resistance. Our production line incorporates:

• Nitrogen protection welding – minimizes oxidation at the fusion zone, producing a straight, shadow-free seam.
• Pure hydrogen bright annealing – bell furnace at 860°C ±10°C, eliminating scale and restoring metallurgical structure.
• Post-anneal cooling – controlled atmosphere prevents secondary contamination.

This combination yields a weld that is virtually indistinguishable from the base metal, both in appearance and mechanical response. The shadow-free seam is particularly valued in decorative kitchenware where visual uniformity is mandatory.

Alloy Selection – 409, 409L, 410, plus 304/316L Options

Material grade dictates corrosion resistance, heat tolerance, and formability. The following table details the primary grades offered for kitchenware applications. 304 and 316L are also available upon request, with comparable mechanical performance.

Grade	C (≤)	Si (≤)	Mn (≤)	P (≤)	S (≤)	Cr	Ni (≤)	Ti
409	0.08	1.00	1.00	0.045	0.045	10.5–11.75	0.50	6×C～0.70
409L	0.06	1.00	1.00	0.015	0.015	10.5–11.75	0.50	10×C–0.75
410	0.04	1.00	1.00	0.045	0.045	10.3–12.5	0.50	—

Note: 304 and 316L also available with standard 18-8 and 16-2-2 compositions respectively.

Verified Mechanical Properties – Tensile, Yield, Elongation

Each grade is tested for consistent mechanical response. The values below are derived from actual production batches, not literature averages.

Grade	Tensile (MPa)	Yield (MPa)	Elongation (%)	Hardness (HV)
409	460	265	32	140
409L	410	235	37	123
410	365	195	22	200

Heat treatment: Bell furnace annealing at 860°C ±10°C. Intermittent service temperature up to 815°C; continuous service up to 675°C. This thermal stability is critical for kitchenware exposed to direct flame or repeated heating cycles.

Surface Mechanical Polishing – 180# to 800# Mirror

Visual appearance is a primary differentiator in kitchenware. Our polishing line supports:

• Bright surface – 180# to 400# grit, satin finish.
• Mirror surface – 400# to 800# grit, reflective finish.
• Polishing is performed mechanically, ensuring uniform direction and depth.
• No chemical brightening – retains original corrosion resistance.

Compared to chemically brightened tubes, our mechanically polished surface exhibits better long-term tarnish resistance and does not suffer from intergranular attack at grain boundaries.

Dimension Matrix – OD and Thickness Combinations

The following size ranges are regularly produced. Custom dimensions are also supported with short lead times.

OD Range (mm)	0.5	0.6	0.7	0.8	0.9	1.0	1.2	1.5	2.0	2.5	3.0	4.0
Φ25 & below	●	●	●	●	●	●	●	●	●	●	●	●
Φ25 ~ Φ44.5	●	●	●	●	●	●	●	●	●	●	●	●
Φ44.6 ~ Φ63.5	●	●	●	●	●	●	●	●	●	●	●	●
Φ76.2 ~ Φ101.6	●	●	●	●	●	●	●	●	●	●	●	●
Φ101.6 & above	●	●	●	●	●	●	●	●	●	●	●	●

● commonly available; other combinations can be quoted upon request.

Rigorous Testing Regime – Beyond Standard Requirements

Every lot undergoes a suite of destructive and non-destructive tests to verify formability and corrosion resistance. These methods are aligned with ASTM and JIS standards:

• Flattening test – sample flattened to prescribed height; no cracks or delamination.
• Bending test – 180° bend over mandrel; no fracture.
• Expanding test – conical mandrel expansion up to 30% OD; no rupture.
• Mechanical properties – tensile, yield, elongation per ASTM E8.
• Salt spray test – 1000 hours per ASTM B117; surface rating 9/10 or better.

These tests are performed in-house and can be witnessed by third-party inspectors. Test reports are provided with each shipment, ensuring full traceability.

Direct Applications in Kitchenware Production

This product is specifically designed for high-volume fabrication of:

• Kitchen handles – oval, round, and D-shaped profiles.
• Teapot spouts – curved geometries requiring bendability and smooth internal bore.
• Lid knobs & fittings – small-diameter tubing for decorative and functional parts.

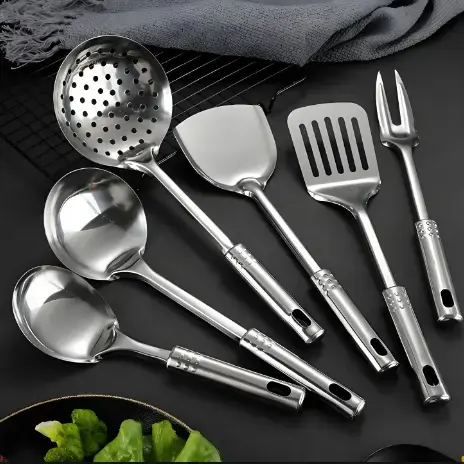

• Utensil shafts – for spatulas, ladles, and turners.

The combination of high expansion rate (>30%) and shadow-free weld allows manufacturers to perform secondary operations (threading, swaging, riveting) without pre-heating or intermediate annealing – reducing production cost and cycle time.

Why This Kitchenware Stainless Steel Pipe Outperforms Alternatives

• Formability margin – expansion >30% vs. industry average 20–25%; fewer rejects in flaring.
• Weld seam quality – nitrogen-shielded + pure hydrogen annealing produces a seam that does not shadow or oxidize during polishing.
• Corrosion safety margin – 1000h salt spray test ensures long-term resistance even in humid kitchen environments.
• Surface consistency – mechanical polishing from 180# to 800# delivers uniform luster without chemical spotting.
• Grade flexibility – 409, 409L, 410, 304, 316L – one supplier for both ferritic and austenitic requirements.

Compared to imported equivalents, this product offers comparable or superior mechanical test results, with shorter lead times and direct technical support from the production team.

Technical FAQs – Kitchenware Tubing

What does “shadow-free weld” mean in practice?

After polishing, the weld seam is visually undetectable – no discoloration, no groove, and no grain boundary etching.

Can this tubing be welded to other components?

Yes – TIG or laser welding is compatible. The nitrogen-shielded primary weld ensures metallurgical compatibility with secondary joining.

Is the 1000h salt spray test performed on polished or unpolished samples?

On polished samples (mirror finish), simulating actual end-use surface condition.

What is the maximum length available?

Typically 6,000mm straight lengths; coils are also available for specific handle production lines.

How is the product packaged to prevent surface damage?

Each tube is interleaved with kraft paper, bundled with PE foam, and wrapped in moisture-barrier film before crating.

Production Environment & Accreditations

• ISO9001 (Quality), ISO14001 (Environmental), ISO45001 (Occupational Health) certified.
• ISO13485 (Medical devices) – applicable for high-purity variants.
• “National High-tech Enterprise” and “Specialized, Refined, Unique and New Little Giant” designations.
• In-house metallurgical lab with OES spectrometer and universal testing machine.
• All production data – including annealing temperature, welding current, and polish speed – is recorded and retained for 10 years.

This infrastructure ensures that every batch of kitchenware stainless steel pipe is manufactured under controlled conditions, with documented evidence of conformance.

Lifecycle Considerations – Material and Processing Efficiency

• High formability reduces scrap during stamping and bending – up to 5% material savings.
• Bright annealing eliminates pickling, reducing chemical waste and water consumption.
• 409/409L grades offer lower nickel content, providing cost stability and supply chain security.
• 100% recyclable – compatible with standard stainless steel recycling streams.

These factors contribute to a lower total manufacturing cost for kitchenware producers, without compromising product quality or durability.

Reliable Supply for Demanding Kitchenware Production

With over 25 years of metallurgical experience, we have refined the production of kitchenware stainless steel pipe to meet the dual requirements of visual excellence and mechanical ruggedness. Our in-house testing – including expansion, flattening, bending, and salt spray – confirms that this product consistently meets or exceeds the specifications required for high-end kitchen utensils.

Shuangsen Pipe Industry is dedicated to building a world-recognized Chinese brand for precision stainless steel tubing. Our combination of advanced welding technology, pure hydrogen annealing, and rigorous quality control ensures that every length of tubing delivers dependable performance in real-world kitchenware manufacturing. For projects that demand formability, corrosion resistance, and a flawless surface, this product line represents a benchmark in quality and value.
