Sanitary Stainless Steel Pipe

Choose Shuangsen, an industry-leading manufacturer and technical supplier of standard-setting Sanitary Stainless Steel Pipe solutions. Outperforming common options, our specialized equipment features straight weld paths without shadows, an expansion rate over 30%, and a flawless surface that handles intense bending and shrinking without bursting. Available in standard 201, 304, and 316L grades, every production run meets the highest structural certification standards across domestic and global sectors.

Metallurgical Composition and Structural Parameters

Chemical Composition Analysis

Precision manufacturing relies on stable chemical element control to resist corrosion and degradation. The alloy elements are calibrated across specific technical material profiles to handle different levels of thermal and environmental exposure:

Alloy Type	C (%)	Si (%)	Mn (%)	P (%)	S (%)	Cr (%)	Ni (%)	Ti (%)
Type 409	≤ 0.08	≤ 1	≤ 1	≤ 0.045	≤ 0.045	10.5 ~ 11.75	≤ 0.5	6 × C ~ 0.70
Type 409L	≤ 0.06	≤ 1	≤ 1	≤ 0.015	≤ 0.015	10.5 ~ 11.75	≤ 0.5	10 × C ~ 0.75
Type 410	≤ 0.04	≤ 1	≤ 1	≤ 0.045	≤ 0.045	10.3 ~ 12.5	≤ 0.5	—

Mechanical and Physical Performance Metrics

Each production run delivers reliable mechanical integrity, ensuring high load capacity during post-forming operations. Below are the precise yield, tensile, and elongation boundaries verified by laboratory analysis:

Alloy Type	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)	Hardness (HB)
Type 409	460	265	32	140
Type 409L	410	235	37	123
Type 410	365	195	22	200

Dimensional Matrix and Sizing Options

System designers require exact outside diameter configurations to assemble reliable liquid transfer lines. This premium Sanitary Stainless Steel Pipe is systematically categorized by outer diameter and wall thickness to handle a broad range of flow velocities and structural layouts.

Common Use Geometric Scale

Outer Diameter D (mm) Range	Available Wall Thickness T (mm)
Φ 25 Under	0.5 / 0.6 / 0.7 / 0.8 / 0.9 / 1.0 / 1.2 / 1.5 / 2.0 / 2.5 / 3.0 / 4.0
Φ 25 ~ Φ 44.5	0.5 / 0.6 / 0.7 / 0.8 / 0.9 / 1.0 / 1.2 / 1.5 / 2.0 / 2.5 / 3.0 / 4.0
Φ 44.6 ~ Φ 63.5	0.5 / 0.6 / 0.7 / 0.8 / 0.9 / 1.0 / 1.2 / 1.5 / 2.0 / 2.5 / 3.0 / 4.0
Φ 76.2 - Φ 101.6	0.5 / 0.6 / 0.7 / 0.8 / 0.9 / 1.0 / 1.2 / 1.5 / 2.0 / 2.5 / 3.0 / 4.0
Φ 101.6 Upwards	0.5 / 0.6 / 0.7 / 0.8 / 0.9 / 1.0 / 1.2 / 1.5 / 2.0 / 2.5 / 3.0 / 4.0

Technical Procurement Specifications

Orders must define specific parameters to maintain complete accuracy during processing. Every batch tracks the following data parameters:

• Name of product and precise mark of stainless steel (e.g., 201, 304, 316L, 409).
• Exact dimensions including outside diameter tolerance and actual thickness.

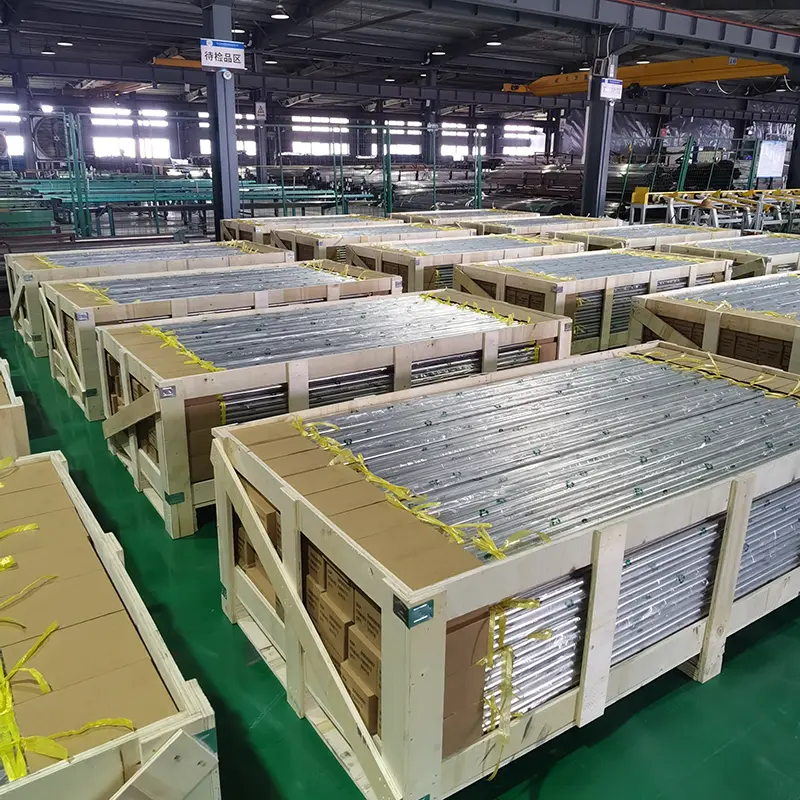

• Total required quantity and preferred packing way.
• Surface polishing requirements, selecting between sanded options (180#-400#) or high gloss finishes.
• Any other specific special requirements tailored to individual pipeline arrays.

Process Engineering and Thermal Capabilities

Welding and Protection Methods

The manufacturing process deploys all-nitrogen protection welding to generate a straight weld path entirely free from internal shadows. This is immediately followed by pure hydrogen annealing protection inside specialized furnace installations. This precise process results in a tough structural bond that achieves a stretching performance above 690 Mpa and a master expansion rate exceeding 30%.

Surface Polishing and Mechanical Finishes

Exterior and interior lines undergo mechanical polishing to meet strict aesthetic and operational criteria. Finishes are systematically applied based on the intended use area:

• Bright Surface: Achieved through continuous mechanical polishing ranging from 180# to 400#.
• Mirror Surface: High-end, reflective finish ranging from 400# to 800# for maximum smoothness.

Thermal Stability Boundaries

The material stands up well to high thermal stress over long operating periods. Intermittent service temperature thresholds reach 815°C, while continuous service conditions can operate steadily at 675°C. Structural uniformity is locked in using bell furnace annealing treated precisely at 860°C ± 10°C.

Industrial Deployments

The excellent processing capabilities of this specialized Sanitary Stainless Steel Pipe make it suitable for deep post-forming modifications. It undergoes intense pipe expansion, pipe shrinking, complex piping bends, and flattening sequences without showing micro-fissures or bursting. The product is widely utilized within:

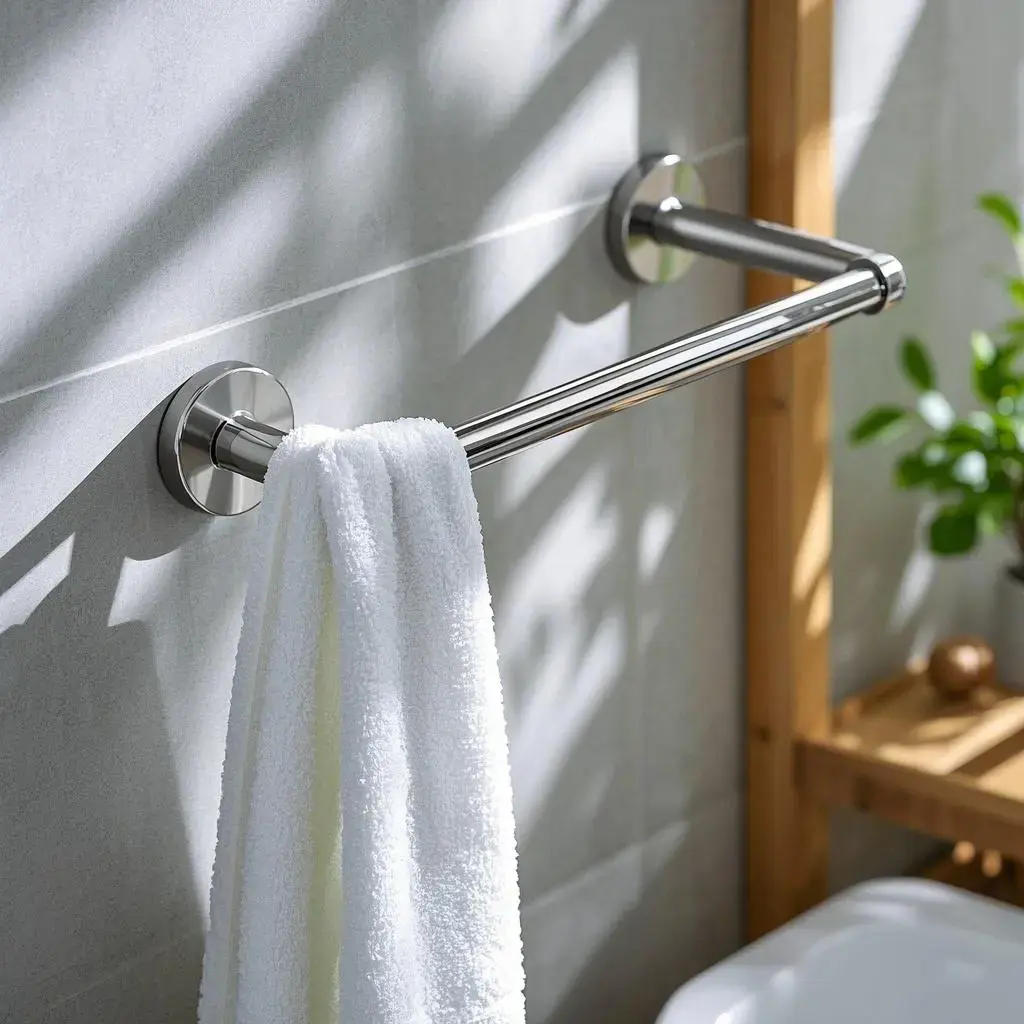

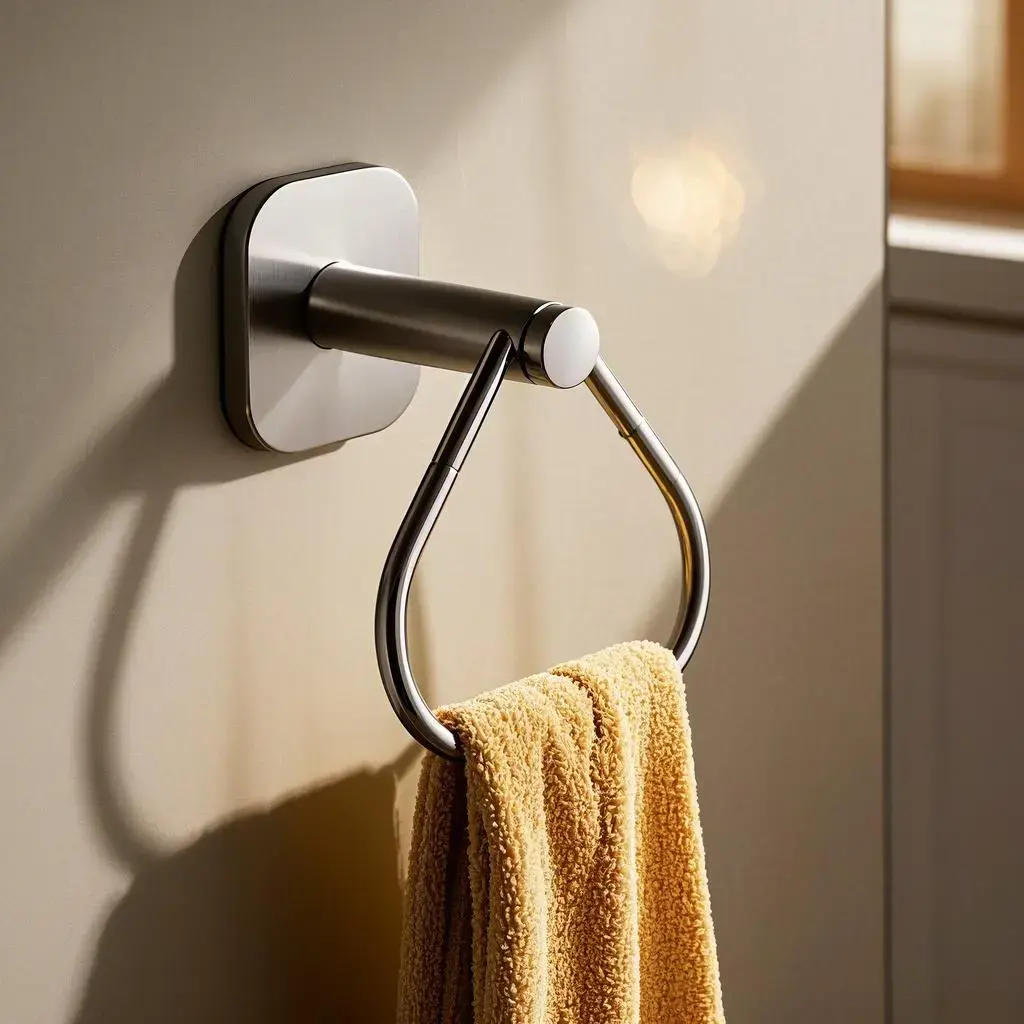

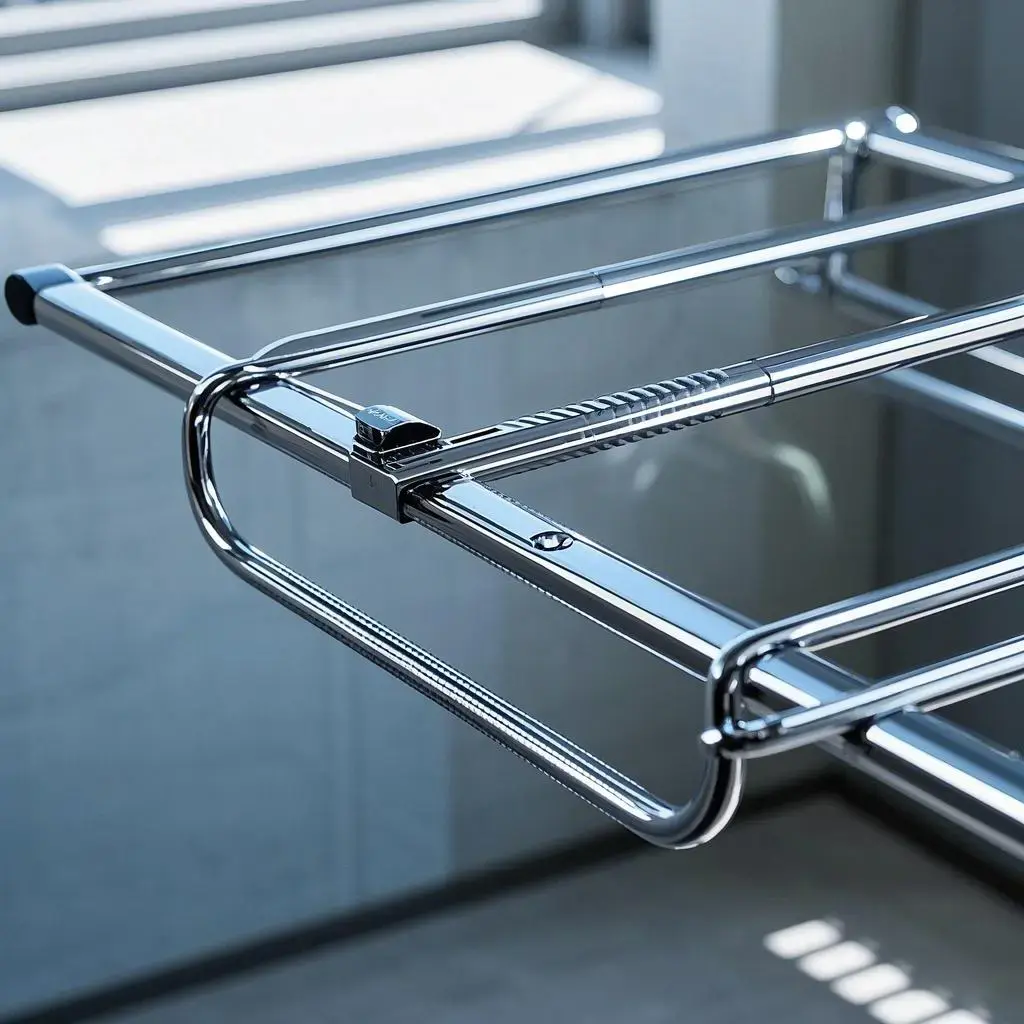

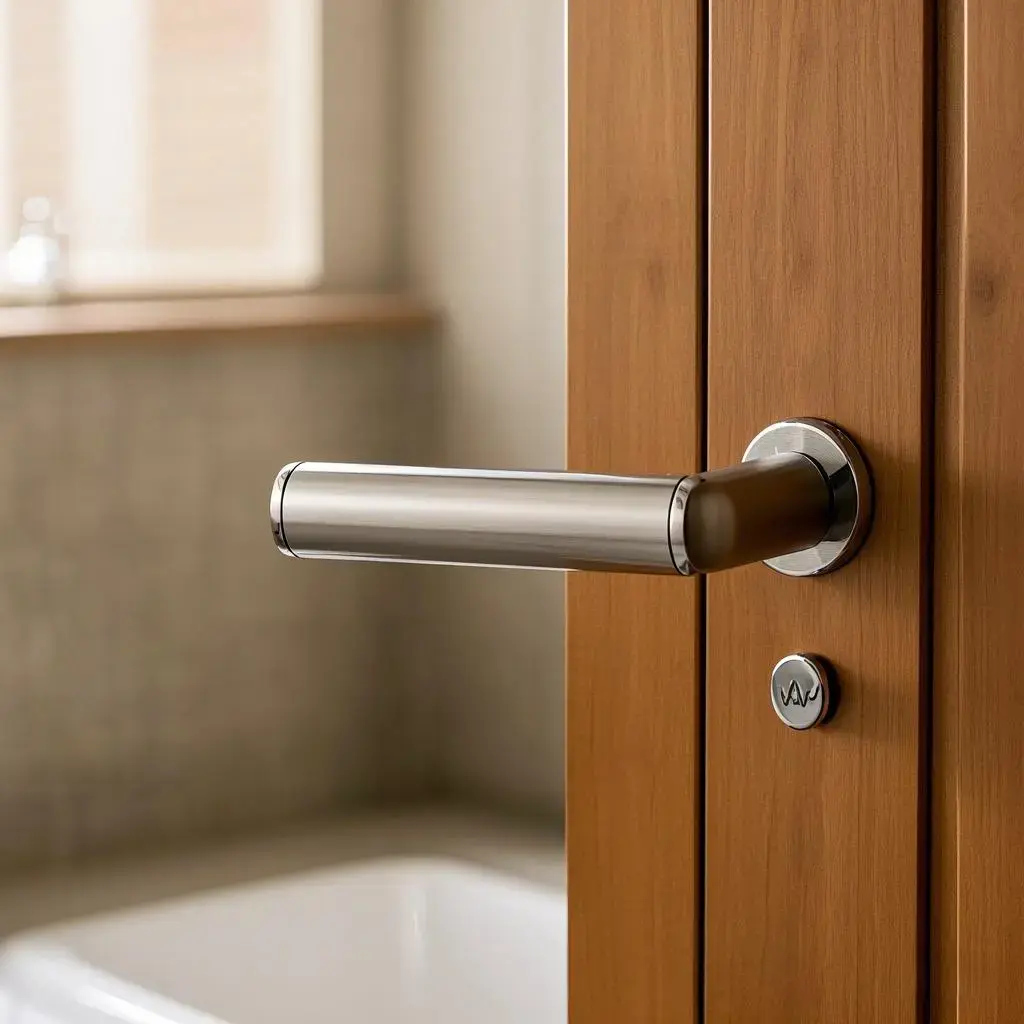

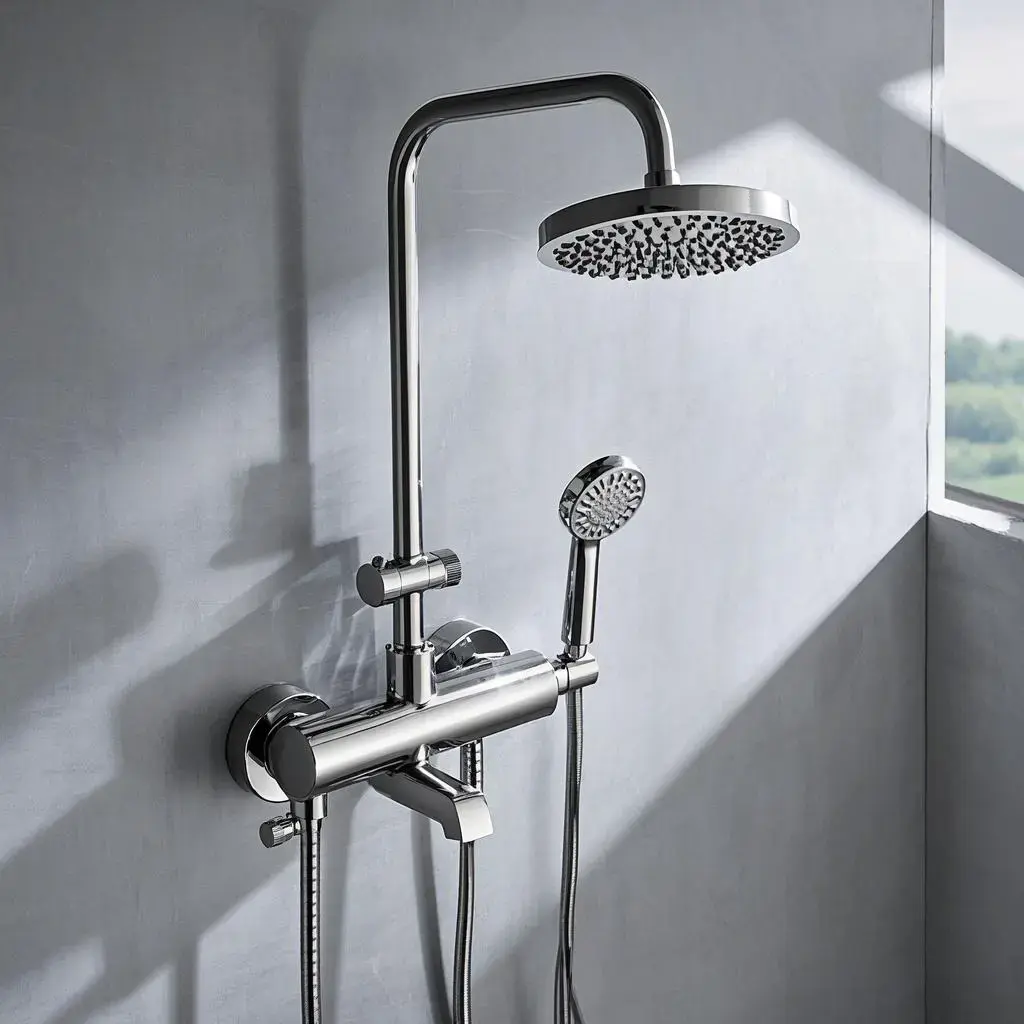

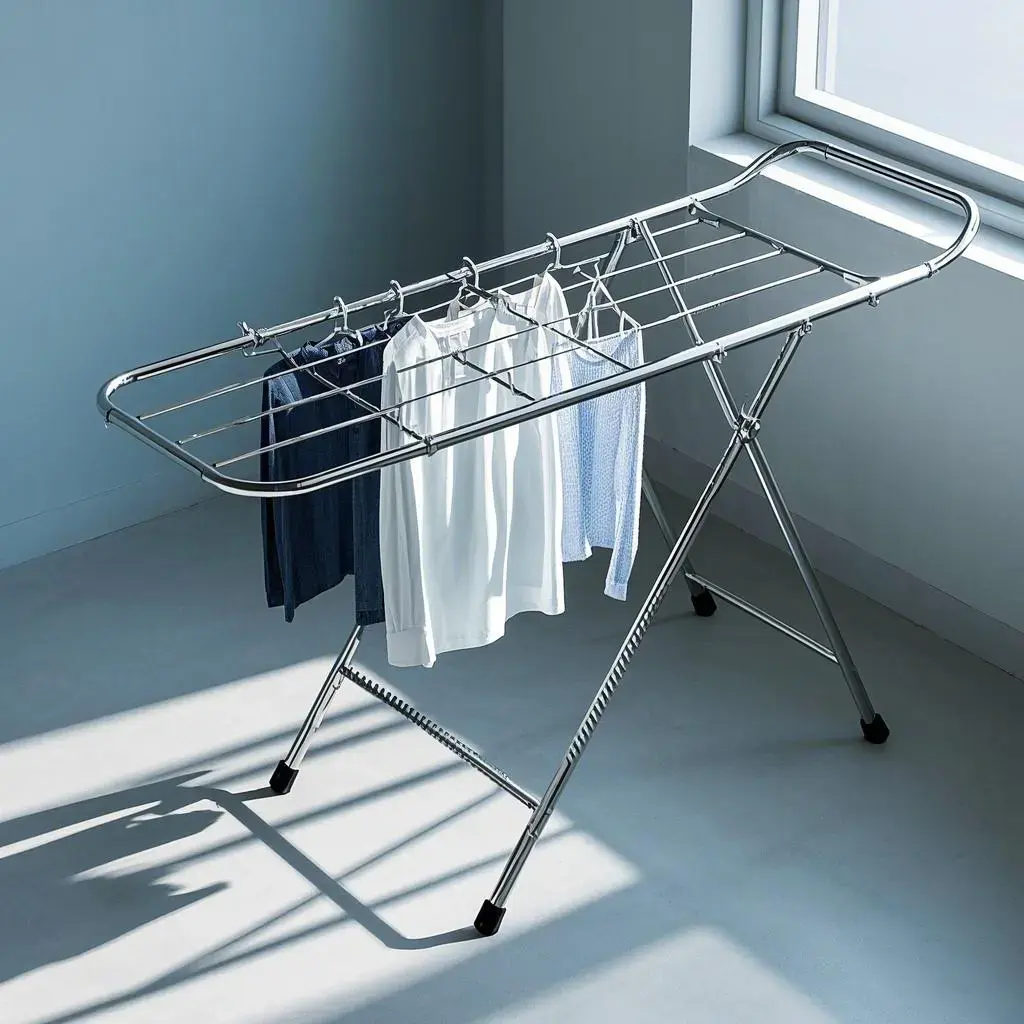

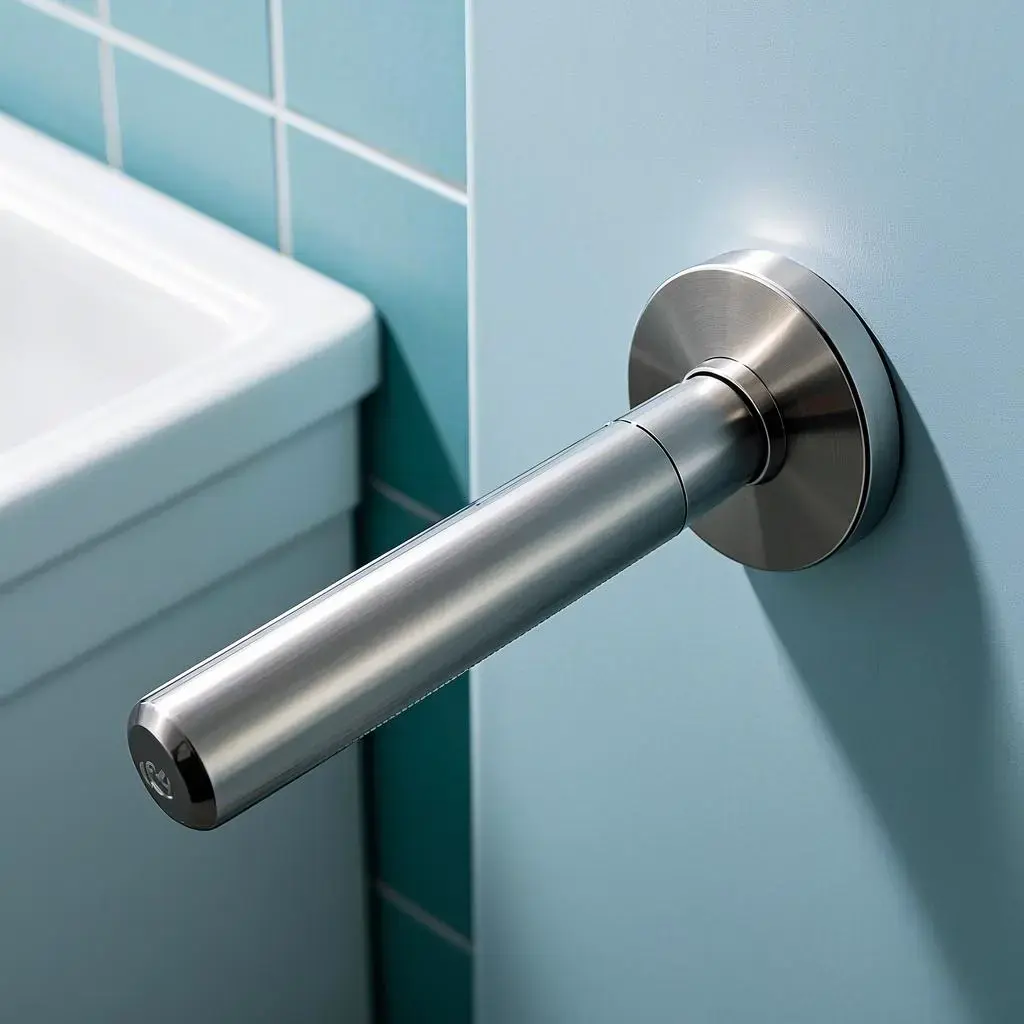

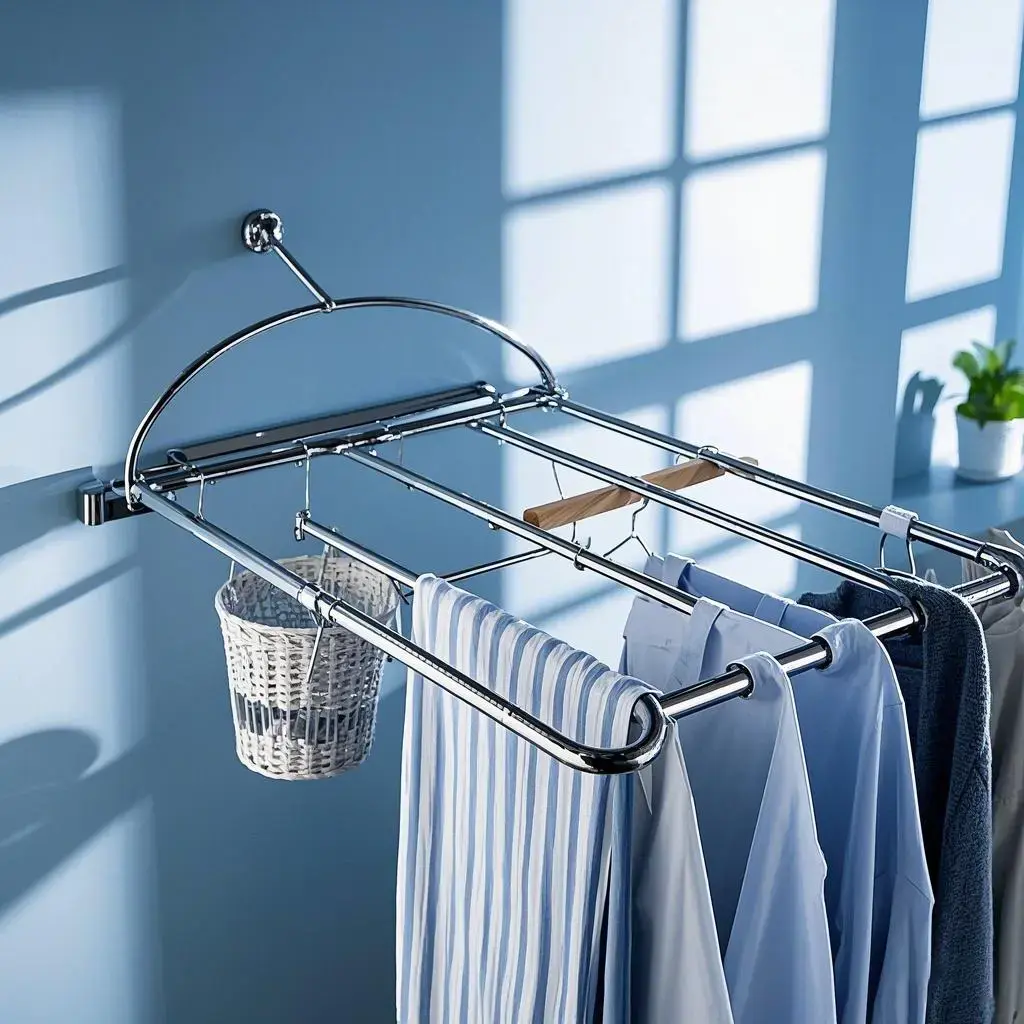

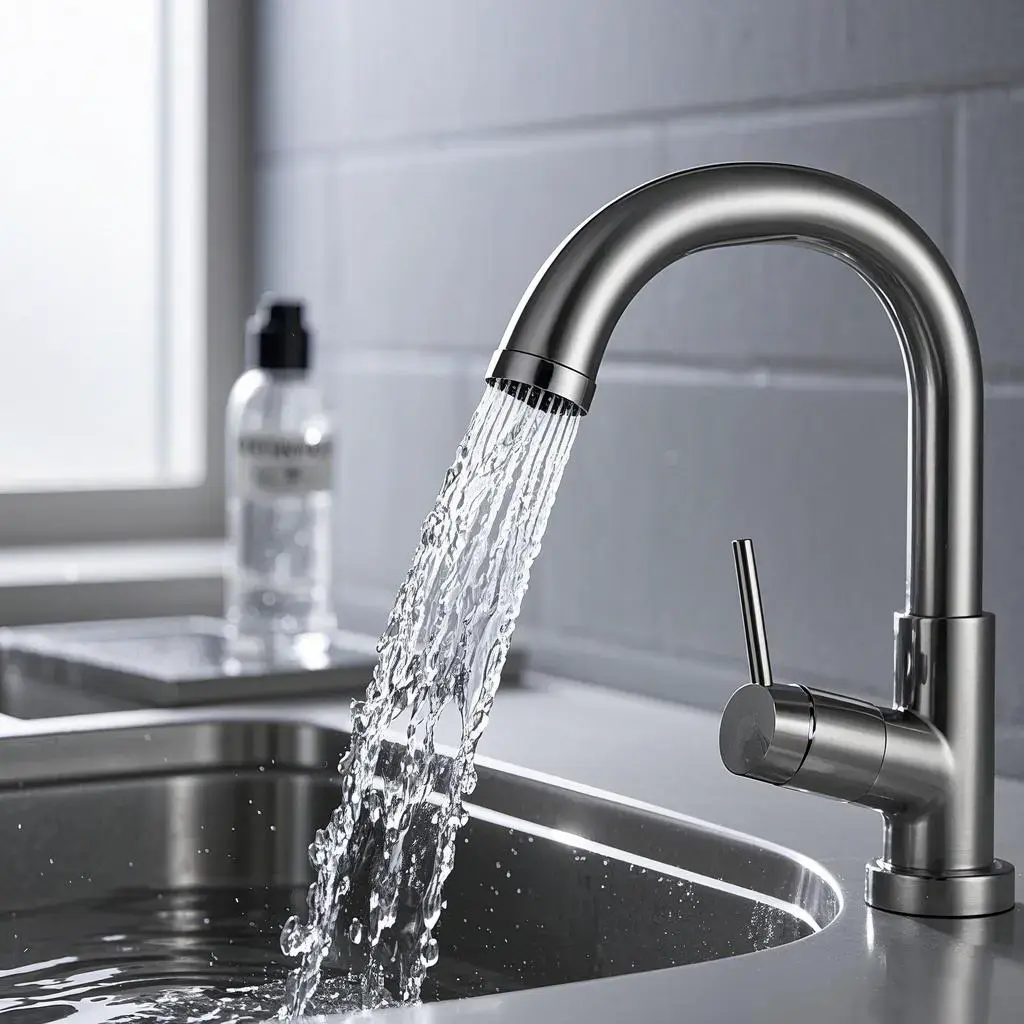

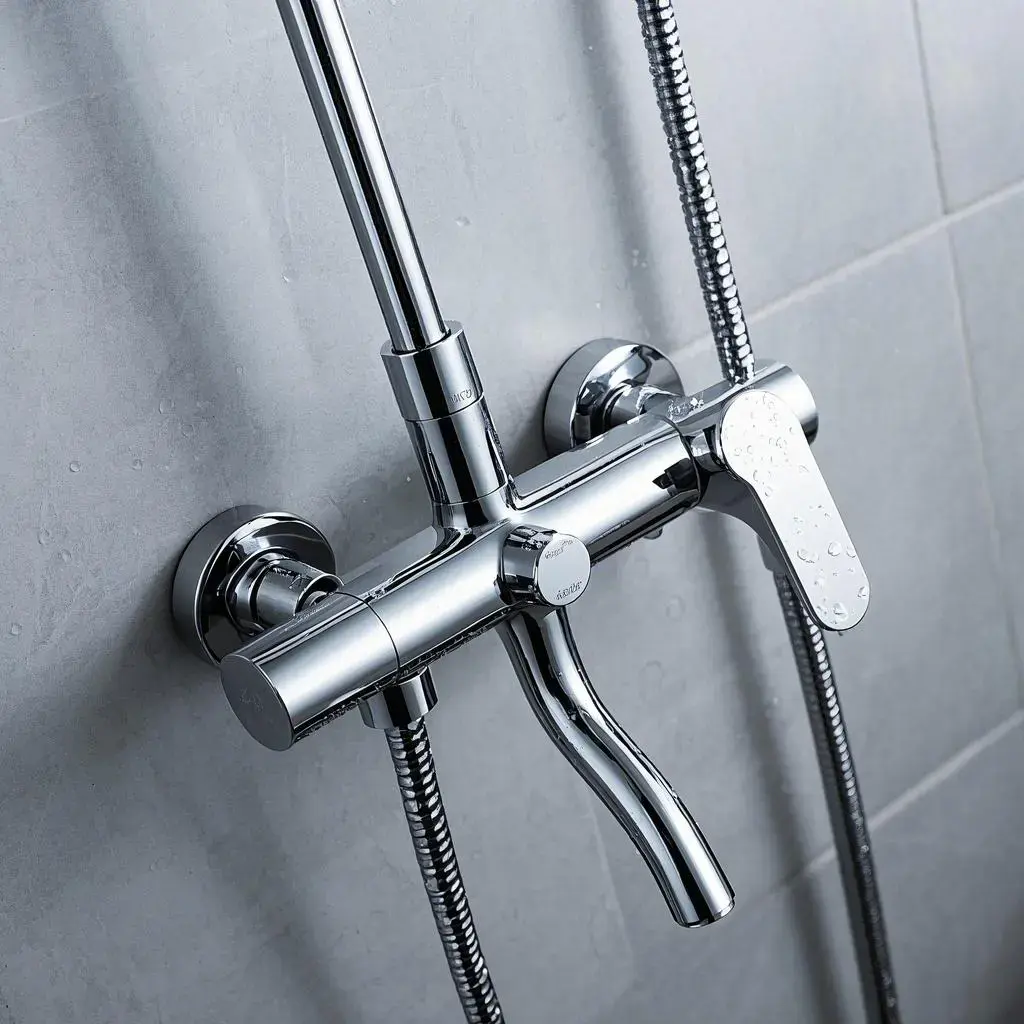

• Hardware assemblies and high-end residential or commercial bathroom equipment.
• Sanitary liquid processing pipelines requiring excellent interior smoothness.
• Corrosive environment components that demand documented acid and moisture resistance.

Quality Verification and Diagnostic Methods

To ensure that zero defective units leave the factory area, technical inspectors apply rigorous testing methods across every production run:

• Flattening Test: Compresses the tube structure to confirm that the weld seam and the base metal bend uniformly without cracking.
• Bending Test: Evaluates mechanical duct stiffness and checks for structural failures along tight radii.
• Expanding Test: Includes mouth expansion and contraction tests to ensure the metal stretches beyond 30% elongation without splitting.
• Mechanical Property Test: Measures absolute yield point, maximum tensile limits, and hardness ratings against international engineering metrics.

Why Choose Us

• Proven Anti-Corrosion Performance: The material withstands a continuous 1000-hour salt spray test with absolutely zero signs of surface corrosion.
• Deep Structural Integrity: The specialized pure hydrogen protection system guarantees a clean weld line that allows the metal to expand or contract heavily without bursting.

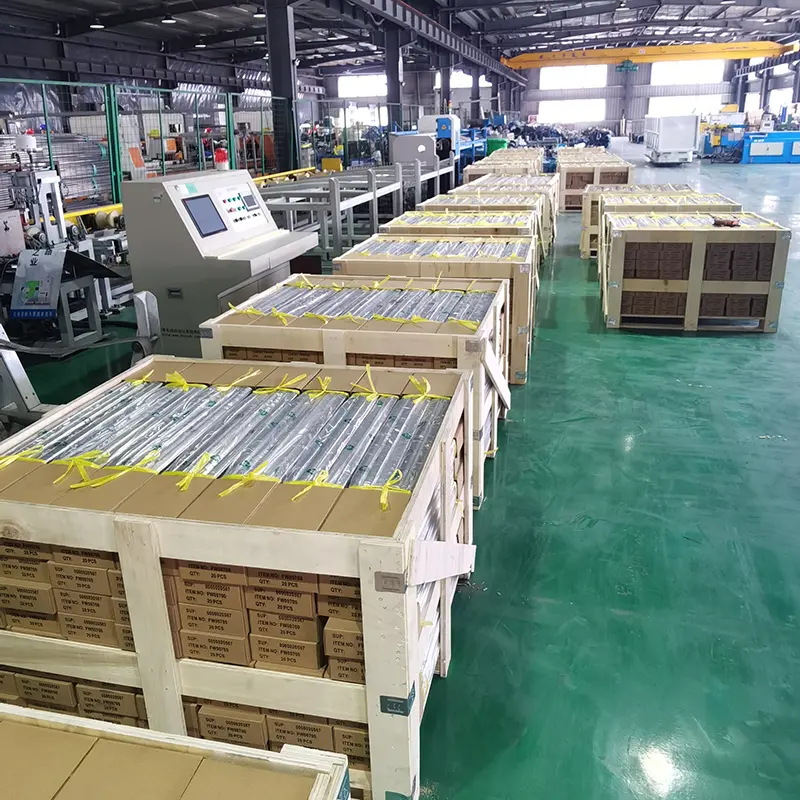

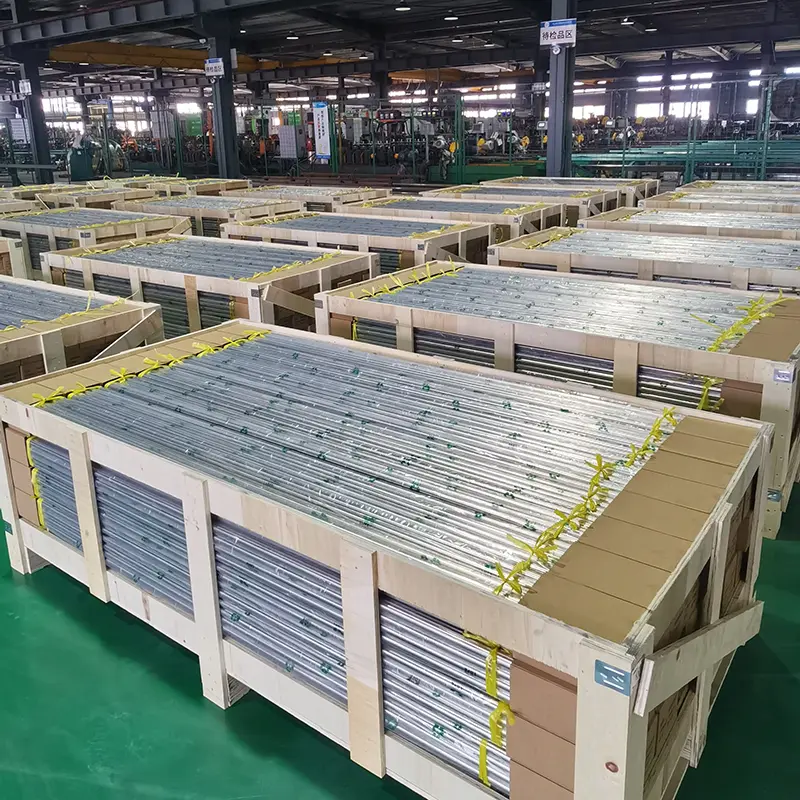

• Extensive Manufacturing Footprint: Operating a 20,000-square-meter facility established in 1999, utilizing 133 complete sets of industrial welded pipe assembly lines backed by 25+ years of specialized experience.
• Comprehensive System Certifications: Production matches strict global standards, including ISO9001 Quality Management, ISO14001 Environmental, ISO45001 Occupational Health, and ISO13485 Medical Device Quality Management.

Frequently Asked Questions

What prevents the pipe from bursting during expansion or bending?

The high processing capability stems from the combination of all-nitrogen protection welding and pure hydrogen annealing. This eliminates internal residual stresses, producing a uniform metal matrix with an expansion rate exceeding 30% and a tensile strength profile above 690 Mpa.

How does bell furnace annealing enhance high-temperature performance?

By annealing the material inside a bell furnace at exactly 860°C ± 10°C, the microstructure becomes completely uniform. This allows the finished product to maintain structural stability during intermittent exposure up to 815°C and continuous operation at 675°C.

What testing methods are used to verify the quality of the finish?

The surface is evaluated through precise surface roughness detection metrics. This ensures that whether the line requires a 180#-400# bright finish or a 400#-800# mirror surface, the profile meets the required specifications.

Strategic Alignment and Brand Standards

Integrating a durable Sanitary Stainless Steel Pipe within a commercial fluid system or a hardware installation requires absolute metallurgical consistency. From the selection of premium raw materials to the exact tracking of geometric tolerances across the Φ 25 to Φ 101.6+ sizing ranges, our manufacturing processes are optimized to eliminate operational risks. By continuously improving our automated production equipment and investing heavily in advanced research, our factory delivers reliable performance across global commercial markets, upholding the independent reputation and high quality standards of the global Shuangsen brand.
