Pipe for Municipal Project and Engineering

Shuangsen is an authorized manufacturer and trusted global supplier delivering specialized Pipe for Municipal Project and Engineering systems. Built using domestic large steel mill refining material and high-end imported pipe welding machine lines, this equipment features 100% leakage-free security and flawless roundness control to meet strict municipal infrastructure specifications.

Technical Processing Metrics and Dimensional Layout

Advanced Production Operations and Mechanical Verification

Infrastructure systems require high geometric reliability to withstand continuous structural stress and soil loading. The manufacturing line uses premium refining materials sourced from large domestic steel mills. The fabrication sequence runs on imported high-end pipe welding machine equipment through a rigorous 26-process forming line. This precision method creates a perfectly uniform welding section, eliminating raw material gaps and welding leakage issues.

To verify structural stability during long-term field installations, every batch is checked against five key dimensional parameters:

• Angle Precision: Perfect profile squareness prevents shifting during heavy framework loading.
• Surface Flatness: Total absence of structural ripples guarantees a uniform load distribution.
• Exterior Brightness: Clean surface finishing matches specified architectural reflectivity standards.
• Bending Degree: Exact straightness across extensive structural spans prevents alignment failures.
• Tensile Degree: High material yield limits absorb seismic shocks and fluid pressure shifts.

Dimensional Matrix for Round Profiles

Outside Diameter D (mm)	Available Wall Thickness T (mm)
6 ~ 12.7	0.5 / 0.6 / 0.7 / 0.8 / 0.9 / 1.0 / 1.2 / 1.5 / 2.0 / 2.5 / 3.0 / 4.0
12.7 ~ 25.4	0.5 / 0.6 / 0.7 / 0.8 / 0.9 / 1.0 / 1.2 / 1.5 / 2.0 / 2.5 / 3.0 / 4.0
25.4 ~ 50.8	0.5 / 0.6 / 0.7 / 0.8 / 0.9 / 1.0 / 1.2 / 1.5 / 2.0 / 2.5 / 3.0 / 4.0
50.8 ~ 101.6	0.5 / 0.6 / 0.7 / 0.8 / 0.9 / 1.0 / 1.2 / 1.5 / 2.0 / 2.5 / 3.0 / 4.0
101.6 ~ 159	0.5 / 0.6 / 0.7 / 0.8 / 0.9 / 1.0 / 1.2 / 1.5 / 2.0 / 2.5 / 3.0 / 4.0
159 ~ 219	0.5 / 0.6 / 0.7 / 0.8 / 0.9 / 1.0 / 1.2 / 1.5 / 2.0 / 2.5 / 3.0 / 4.0

Dimensional Matrix for Square and Rectangular Profiles

Square Profile Scale (mm)	Rectangular Profile Scale (mm)	Available Wall Thickness T (mm)
8x8 ~ 15x15	20x10 ~ 30x15	0.5 / 0.6 / 0.7 / 0.8 / 0.9 / 1.0 / 1.2 / 1.5 / 2.0 / 2.5 / 3.0 / 4.0
16x16 ~ 25x25	38x25 ~ 40x60	0.5 / 0.6 / 0.7 / 0.8 / 0.9 / 1.0 / 1.2 / 1.5 / 2.0 / 2.5 / 3.0 / 4.0
30x30 ~ 38x38	75x45 ~ 120x60	0.5 / 0.6 / 0.7 / 0.8 / 0.9 / 1.0 / 1.2 / 1.5 / 2.0 / 2.5 / 3.0 / 4.0
50x50 ~ 80x80	120x60 or above	0.5 / 0.6 / 0.7 / 0.8 / 0.9 / 1.0 / 1.2 / 1.5 / 2.0 / 2.5 / 3.0 / 4.0
90x90 ~ 150x150	—	0.5 / 0.6 / 0.7 / 0.8 / 0.9 / 1.0 / 1.2 / 1.5 / 2.0 / 2.5 / 3.0 / 4.0

Material Classification and Environmental Allocation

Standard Compliance Directory

All raw alloys are processed following the GB/T 12770-2002 standard specification. Proper material selection prevents premature corrosion, cracking, or wall thinning when a specialized Pipe for Municipal Project and Engineering is installed across different environment categories.

Alloy Composition	Standard Reference	Designated Environmental Exposure Limits
1Cr17Mn6Ni5N	201	Lightly-polluted environments with low atmospheric moisture and minimal chemical runoff.
1Cr18Mn8Ni5N	201
0Cr18Ni9	304	Medium-polluted environments, standard municipal exterior structures, and open air frameworks.
0Cr17Ni12Mo2	316	Heavily-polluted zones, coastal salty-foggy installations, and industrial areas exposed to acid rain.
00Cr17Ni14Mo2	316L
1Cr18Ni9Ti	321	Dedicated heavy industrial installations and specialized plant equipment frameworks.
0Cr12Ti	409	Internal mechanical assemblies and protected structural backing tubes.
Cr17	430	Indoor dry environments requiring low contact with moisture or liquid chemicals.

Engineering Installation Frameworks

High mechanical load capacities and low outside diameter tolerances allow this pipeline product to integrate smoothly into major public structural networks. Common structural applications include:

• Transit hubs, passenger concourses, railway stations, and airport terminals.
• Subway networks and heavy underground public utility framing.
• Commercial buildings, hotels, shopping malls, and large residential high-rises.

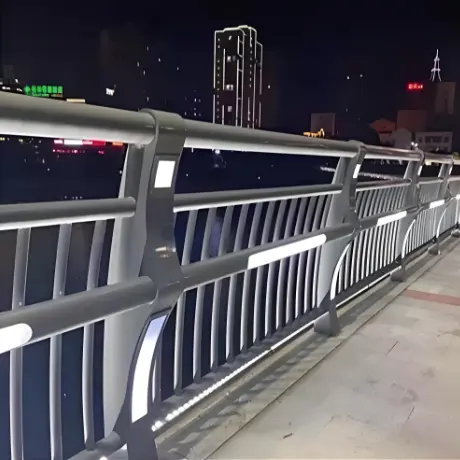

• High-strength architectural railings, structural guardrails, and barrier supports.

Surface Profiles and Metrology Checkpoints

Surface Finish Adaptations

The processing factory delivers three distinct surface configurations to meet specific friction coefficients and aesthetic properties:

• Bright Surface Finish: High-end specular texturing polished to a clean (400# - 600#) light value.
• Sand Surface Profiling: Precision abrasion classified by sand numbers 180#, 240#, and 320#, available in original sand or straight sand patterns.
• Unprocessed Plain Surface: Standard cold-rolled bright surface finishing delivered directly from the mill runs.

Diagnostic Validation Methods

To ensure total compliance with GB/T 12770-2002 guidelines, every production run is verified by trained technicians using strict material testing frameworks:

• Surface Roughness Detection: Laser and mechanical testing instruments verify the surface finish parameters.
• Flattening Test: Compresses the tube wall to ensure the weld path absorbs cross-sectional deformation without splitting.
• Bending Test: Evaluates structural flexibility across diverse geometric radii without wrinkling or wall cracking.
• Expanding Test: subjects tube openings to radial force to check ductile elongation limits.
• Advanced Verification: Technical specifications can be updated to include mechanical property tests, salt mist tests, water pressure tests, and eddy current tests.

Why Choose Us

• Imported Mechanical Welding: Utilizing high-end imported welding machinery and a 26-process forming line eliminates typical fusion defects and weld leakage.
• Rigid Five-Degree Verification: Enforcing automated control over angle, flatness, brightness, bending degree, and tensile degree ensures high precision during site alignment.
• Substantial Facility Capacity: Operating a 20,000-square-meter facility launched in 1999, utilizing 133 complete industrial welded assembly lines with 25+ years of production experience.
• Verified Regulatory Authorizations: Certified under ISO9001 Quality, ISO14001 Environmental, ISO45001 Occupational Health, and ISO13485 Medical Device Quality Management systems.
• Official Enterprise Titles: Recognized as a "National specialized, Refined, Unique and New" Little Giant Enterprise and a certified "National high-tech enterprise".

Frequently Asked Questions

What precise parameters must be detailed when placing a procurement order?

To ensure perfect execution on our automated lines, orders should specify: name of product, mark of stainless steel, precise dimensions including outside diameter tolerance, exact quantity, surface polishing specifications (sanded 180#-400# or high gloss), actual thickness, preferred packing way, and any special design requirements.

What prevents the welding section from cracking during heavy physical bending?

The high joint performance is achieved through our 26-process forming line and imported high-end welding machine tools. This method ensures full grain fusion across the seam, allowing the finished component to easily pass standard flattening, bending, and expanding tests.

Which alloy profile is recommended for transit lines exposed to coastal salty fog?

For seaside infrastructure projects or areas subject to acid rain, 316 (0Cr17Ni12Mo2) or 316L (00Cr17Ni14Mo2) is recommended. These grades include specialized Molybdenum additions that prevent surface pitting and stress corrosion cracking.

Infrastructure Sourcing and Brand Standards

Deploying a durable Pipe for Municipal Project and Engineering network within dense urban or industrial frameworks demands absolute chemical and dimensional consistency. From tracking strict raw material batches from large domestic refineries to running continuous lots through online roundness control and bright solid melting heat treatment systems, our workflows focus on preventing field component failure. By investing in advanced tooling and maintaining strict quality inspections, our factory delivers reliable structural components to global engineering projects, securing the long-term performance and independent reputation of the global Shuangsen brand.
