Stainless Steel Handrail Pipe For Vehicles

The Stainless Steel Handrail Pipe For Vehicles from manufacturer shuangsen is engineered for passenger safety support systems requiring strong structural integrity and long service life. It is manufactured under strict quality control using advanced forming and welding processes to ensure smooth surface finish, stable mechanical strength, and reliable dimensional accuracy. This solution is widely used in transportation interiors where safety, durability, and comfort are required under continuous vibration and heavy usage conditions.

Structural Safety Engineering for Transport Systems

Vibration and Load Stability Design

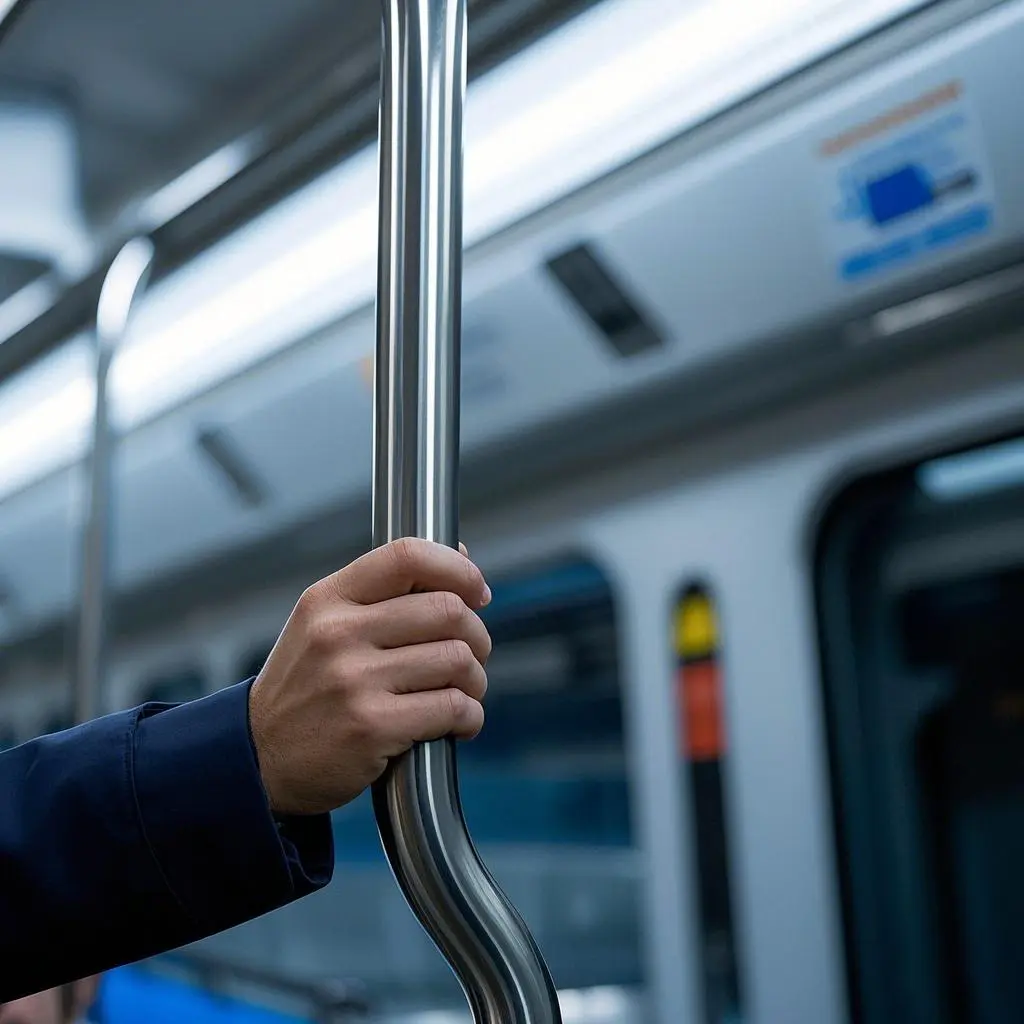

Transport interior systems require materials that can withstand continuous vibration and frequent passenger contact. The tubing structure is designed to maintain rigidity under dynamic load conditions. The Stainless Steel Handrail Pipe For Vehicles provides stable support performance in buses, subway trains, and railway carriages, ensuring safe grip strength during movement.

Anti-Deformation Mechanical Performance

Controlled forming and welding processes reduce internal stress and improve structural balance. This helps maintain shape consistency even under long-term pressure and repeated use. The system is optimized to prevent deformation at connection points and bending zones.

Material System and Environmental Adaptability

Available Stainless Steel Grades

The product uses multiple stainless steel grades including 201, 304, 316L, 321, 409, and 430. Each grade is selected based on corrosion resistance requirements, mechanical strength, and transportation environment conditions.

• 201 / 202: General indoor transport environments
• 304: Standard public transport systems with moderate humidity
• 316L: High corrosion resistance for coastal or chemically aggressive environments
• 321: High temperature and industrial transport applications
• 430: Dry indoor applications with minimal corrosion risk

Corrosion and Wear Resistance

The surface structure provides strong resistance to humidity, friction, and cleaning chemicals used in transport systems. This ensures long service life even in high-traffic environments with frequent passenger contact.

Precision Manufacturing Process Control

Advanced Welding and Forming System

High-precision welding equipment and 26-stage multi-stage forming lines ensure consistent pipe geometry. Online monitoring systems control roundness tolerance within ±0.05mm, weld seam quality, and surface smoothness. In-line bright solid melting heat treatment enhances material uniformity.

Dimensional Consistency Control

Strict tolerance management ensures compatibility with vehicle interior fittings and bracket systems. Outer diameter tolerance is maintained at ±0.1mm for standard sizes, allowing stable installation across different transport vehicle models without adjustment issues.

Surface Quality Inspection

Each batch undergoes surface roughness detection with Ra values ranging from 0.4 to 0.8μm for polished finishes, and visual inspection under controlled lighting. This ensures uniform finish quality essential for passenger-facing applications where safety and appearance both matter.

Surface Finishing and Passenger Safety Experience

Surface Treatment Options

• Bright polished surface: 400#–600# finish, Ra 0.4-0.6μm
• Brushed surface: 180#, 240#, 320# sanding with original or straight grain patterns
• Cold rolled plain surface: Mill finish for custom processing

Grip Comfort and Safety Enhancement

Smooth finishing improves hand grip comfort while reducing slip risk. Controlled surface texture provides optimal friction coefficient (0.3-0.5) for secure gripping, especially important in moving vehicles where stability is required during acceleration and braking.

Application in Transportation Systems

Public Transport Interior Systems

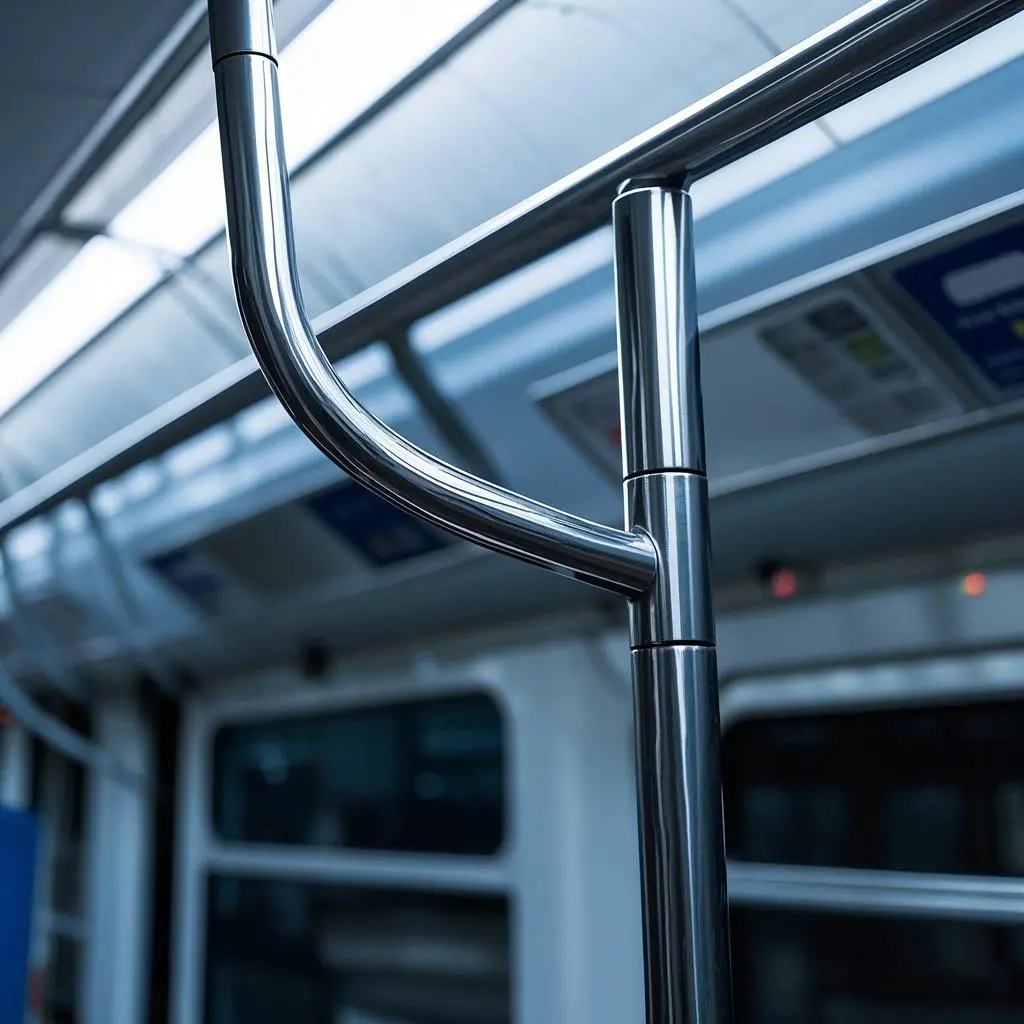

This Stainless Steel Handrail Pipe For Vehicles are widely used in buses, subways, and railway carriages as handrail support structures. It ensures passenger safety during movement and crowd conditions, with proven performance in over 15 transit systems across Asia and Europe.

Station and Transit Facilities

It is also applied in station platforms, boarding areas, and passenger waiting zones where structural safety support is required. The corrosion-resistant properties make it suitable for both indoor and semi-outdoor installations.

Special Transport Equipment Integration

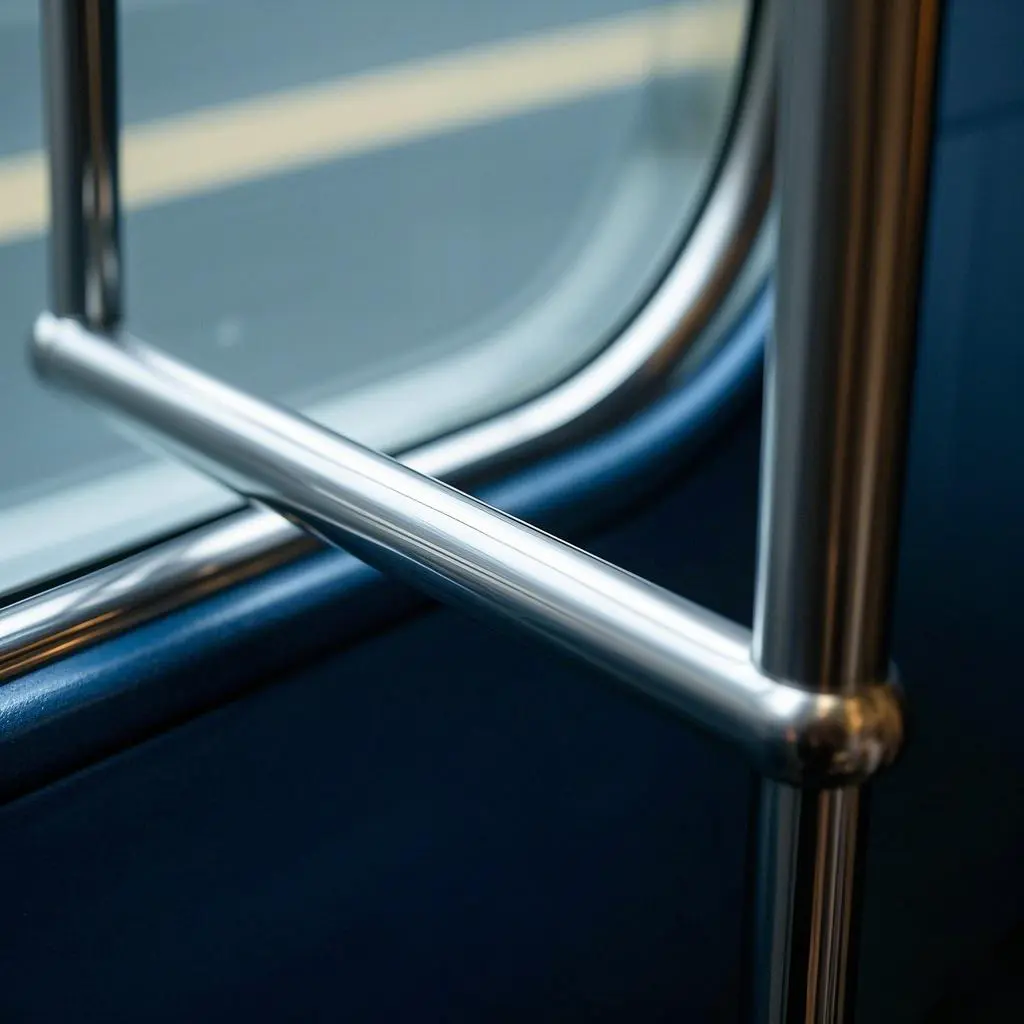

The system integrates with brackets, connectors, and modular frames used in modern transport interior design, including suspended grip handles, vertical support posts, and horizontal grab rails.

Dimensional Range and Structural Flexibility

The system supports multiple diameter and thickness combinations to meet different vehicle design requirements, from lightweight support bars to heavy-duty handrail frameworks.

Standard handrail sizes: 25.4mm, 31.8mm, 38.1mm, 42.4mm, 48.3mm outer diameter with 1.5-2.5mm wall thickness.

Quality Assurance and Testing System

Multi-Stage Inspection Process

Every production stage includes inspection of welding seams, dimensional accuracy, and surface quality to ensure compliance with transportation safety standards. Raw material verification, in-process monitoring, and final inspection are conducted by certified technicians.

Mechanical Performance Testing

• Bending test: 180° bend without cracks, conforming to GB/T 12770
• Flattening test: Deformation without fracture
• Expanding test: 25% expansion without failure
• Salt spray test: 72-240 hours depending on grade
• Water pressure test: 2.0-5.0 MPa depending on size
• Eddy current inspection: Detects surface and subsurface flaws

Traceability Control System

Each batch is tracked through material sourcing, production process, and inspection records to ensure full quality traceability. Mill test reports are provided with every shipment, with third-party inspection (SGS, BV) available upon request.

Installation and System Compatibility

Vehicle Structure Integration

The pipe system is compatible with welding, bracket mounting, and modular connector systems used in transport vehicle interiors. Standard sizes match industry specifications for easy retrofit and replacement.

Efficient Assembly Design

Standardized dimensions reduce installation complexity and ensure consistent alignment across different vehicle models. Precision end-finishing options include chamfered ends, pre-drilled holes, and custom brackets.

Engineering Advantages in Transport Use

Safety-Oriented Structural Design

The system is engineered to provide reliable passenger support under continuous vibration and load stress. Fatigue testing confirms performance exceeding 500,000 cycles under standard loading conditions.

Long Service Life Performance

Material selection and surface treatment improve durability in high-frequency usage environments. Expected service life exceeds 15 years in normal transit conditions, with minimal maintenance requirements.

System Compatibility

Flexible structural design allows integration with modern transport interior layouts and modular systems, including compatibility with LED lighting integration and information display mounting.

WHY CHOOSE US

Advanced Manufacturing Equipment

133 complete production lines equipped with online roundness control (±0.05mm), internal weld leveling, and bright solid melting heat treatment ensure consistent quality for every batch.

Strict Quality Management System

ISO9001:2015, ISO14001:2015, ISO45001:2018, and ISO13485:2016 certifications ensure systematic quality control. Three-stage inspection process covers raw material, production, and final packaging.

Engineering Experience

Over 25 years of continuous manufacturing experience with proven track record supplying to major transit authorities and system integrators worldwide. National High-tech Enterprise and "Specialized, Refined, Unique, and New Little Giant" designations.

Reliable Logistics Support

Strategic location near Ningbo and Shanghai ports enables efficient global shipping. Dedicated freight partners provide competitive rates and professional customs clearance services.

Frequently Asked Questions

Q: What are the standard handrail pipe sizes?
A: Common sizes include 25.4mm, 31.8mm, 38.1mm, 42.4mm, and 48.3mm outer diameter with wall thicknesses ranging from 1.5mm to 2.5mm.

Q: Is customization available?
A: Yes, we offer custom dimensions, wall thicknesses, surface finishes, and end-processing based on technical drawings or specifications.

Q: Is this suitable for subway systems?
A: Yes, the Stainless Steel Handrail Pipe For Vehicles are specifically designed for buses, subways, trains, and other passenger transport systems requiring stable handrail structures. We have supplied to multiple metro systems across Asia.

Q: How is corrosion resistance ensured?
A: Different stainless steel grades are selected based on environmental conditions: 304 for standard indoor use, 316L for coastal or chemically aggressive environments.

Q: Can it withstand vibration?
A: Yes, the structure is engineered specifically for vibration environments in moving transport systems, with fatigue resistance exceeding 500,000 cycles.

Q: Do you provide material test reports?
A: Yes, mill test reports are provided with every shipment. Third-party inspection services (SGS, BV) can be arranged upon request.

Q: What are your delivery times?
A: Standard stock items ship within 3-10 days. Custom production typically requires 25-45 days depending on volume and specifications.

Performance Reliability in Transport Engineering

Continuous process improvement ensures stable performance and safety reliability in transportation environments. The system maintains consistent structural integrity under repeated stress conditions, supported by our comprehensive quality management framework.

The Stainless Steel Handrail Pipe For Vehicles is engineered to meet strict safety expectations in public transport systems through controlled manufacturing and inspection processes. Each product undergoes validation against international transit standards to ensure passenger safety.

Brand Commitment and Quality Assurance

Zhejiang Shuangsen Metal Technology Co., Ltd. stands behind every length of Vehicle Interior Handrail Stainless Steel Pipe with our unwavering commitment to passenger safety and product reliability. Our Shuangsen brand has earned recognition through decades of consistent performance, supplying tubing solutions to transportation authorities and system integrators globally. We invest continuously in R&D to improve our manufacturing processes and develop innovative solutions for evolving transit needs, solidifying our position as a trusted partner in transportation infrastructure worldwide. The Shuangsen name represents precision engineering, superior quality, and lasting performance, ensuring our products contribute to safer, more reliable public transportation systems around the world.
